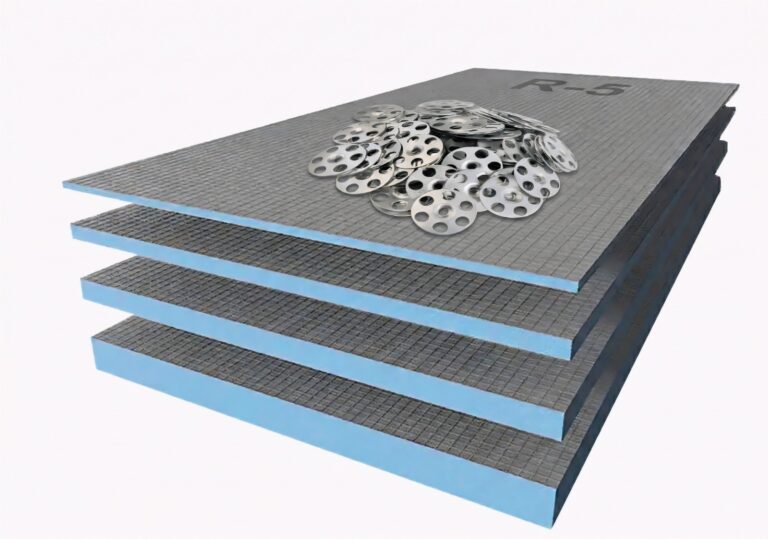

Included Items: 10x Tile Backer Boards + 150 Washers
The XPS Tile Backer Board is a high-performance substrate designed for reliable tile installation, particularly in wet and humid environments. Featuring a blue, closed-cell XPS foam core that is completely free of CFCs and HCFCs, the board is coated on both sides with fiberglass mesh and a polymer-cement mortar layer. This construction creates a stable and durable surface ideal for setting tiles using the thin-bed process.
The XPS foam core is 100% waterproof and offers excellent resistance to water vapor. When seams and fastener heads are correctly sealed, the board forms part of a complete waterproof installation system. The panels meet stringent ASTM and ANSI waterproofing standards, ensuring long-term durability and dependable performance.
Lightweight yet strong, the board is easy to transport, handle, cut, and install — making it suitable for professional installers and DIY projects alike.
Key Features
-
Thermally insulating
-
Fully waterproof and dimensionally stable
-
Lightweight (approx. 1.8 kg per 1200 × 600 × 10 mm board)
-
Easy to cut with a knife or saw
-
Ideal for wet rooms and moisture-prone areas
-
Excellent sound insulation (12 mm board reduces noise by approx. 20 dB)
-
Environmentally friendly (CFC & HCFC free)
-
Easy and efficient to tile over
-
Compatible with underfloor heating systems
Typical Applications
-
Underfloor heating insulation
-
Wetrooms and shower areas
-
Bathrooms and kitchens
-
Tiled floors and walls
-
Renovation and new-build projects
-
Steam rooms and spa areas
-
Utility and laundry rooms
Thermopanel Tile Backer Board Fixing Washers
To ensure secure and long-lasting installation, Thermopanel Tile Backer Board Fixing Washers are designed specifically for fixing insulation boards to floors and walls, including Thermopanel, Marmox, Wedi, and similar tile backer boards.
These fixing washers provide a reliable mechanical fixing method, helping to stabilise boards prior to tiling and ensuring a solid substrate.
Washer Features
-
Countersunk design allows the screw head to pull into the board while the outer rim remains flush with the surface
-
Perforated surface maximises board exposure for superior adhesive and plaster bonding
-
Reduces the risk of surface delamination or damage
-
Suitable for both wall and floor installations
-
Ensures secure mechanical fixing in wet and dry areas
The perforated design allows tile adhesives and plasters to key through the washer, maintaining full surface adhesion and creating a continuous, stable tiling base.
Important Notes
-
Correct installation methods must always be followed to ensure optimal performance.
-
Seams, joints, and fastener heads must be properly sealed in waterproof applications.
-
Always use appropriate screws and fixing washers suited to the substrate type.
-
Follow manufacturer guidelines for spacing and fixing patterns.
Ideal for bathrooms, showers, kitchens, wet rooms, and other moisture-prone areas, the XPS Tile Backer Board system — complete with Fixing Washers and optional Fiberglass Mesh Tape — provides a durable, insulated, and fully waterproof solution for modern tile installations.
