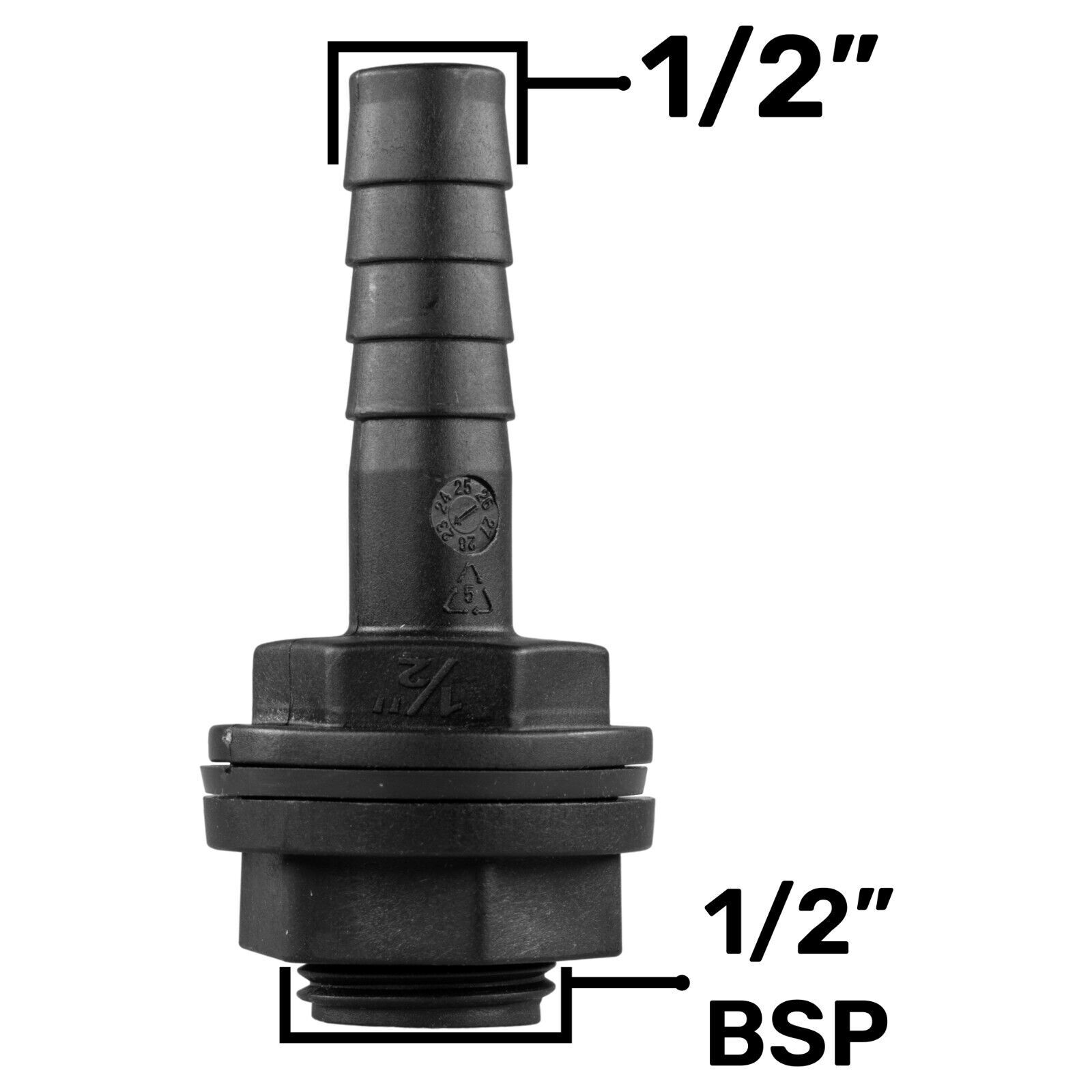

Water Butt Connector BSP Thread to Hose Barb
Create a reliable outlet from your water butt or tank using a BSP threaded connector with hose barb. Designed for a secure, leak-resistant fit through a tank wall and to accept standard hose or pipe for garden watering and general water transfer.
Price range: £4.58 through £7.91
Product Details

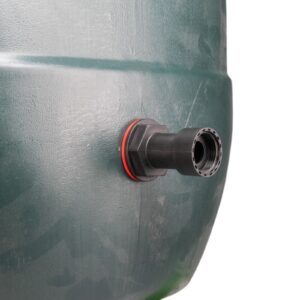

This water butt connector makes it easy to add a dependable outlet to a rainwater tank, water butt or similar container. It passes through the tank wall and provides a hose barb connection, helping you route water neatly to a hose or pipe for garden watering and water transfer jobs.

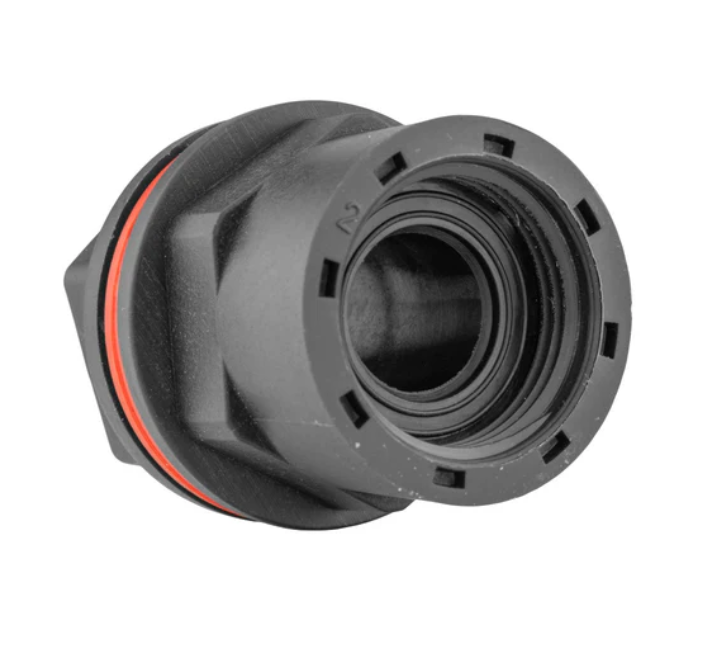

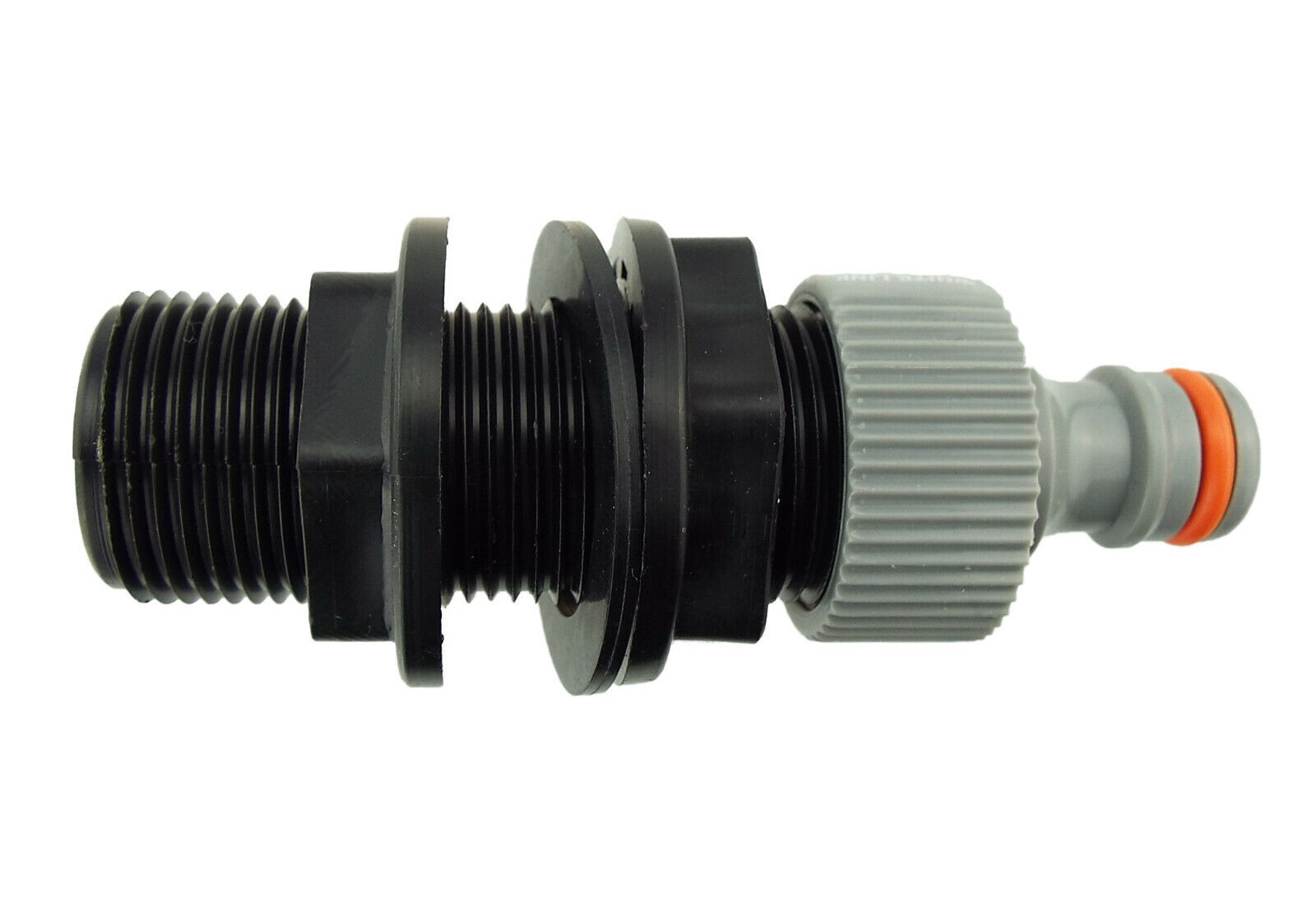

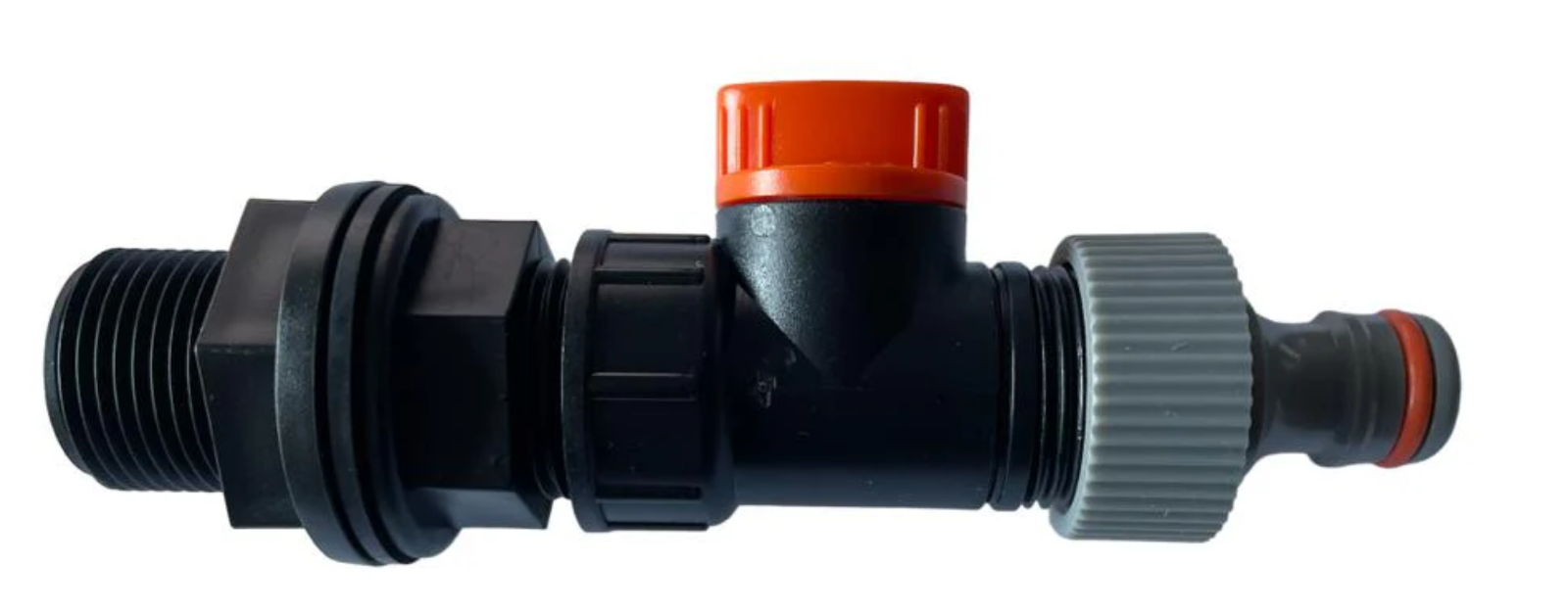

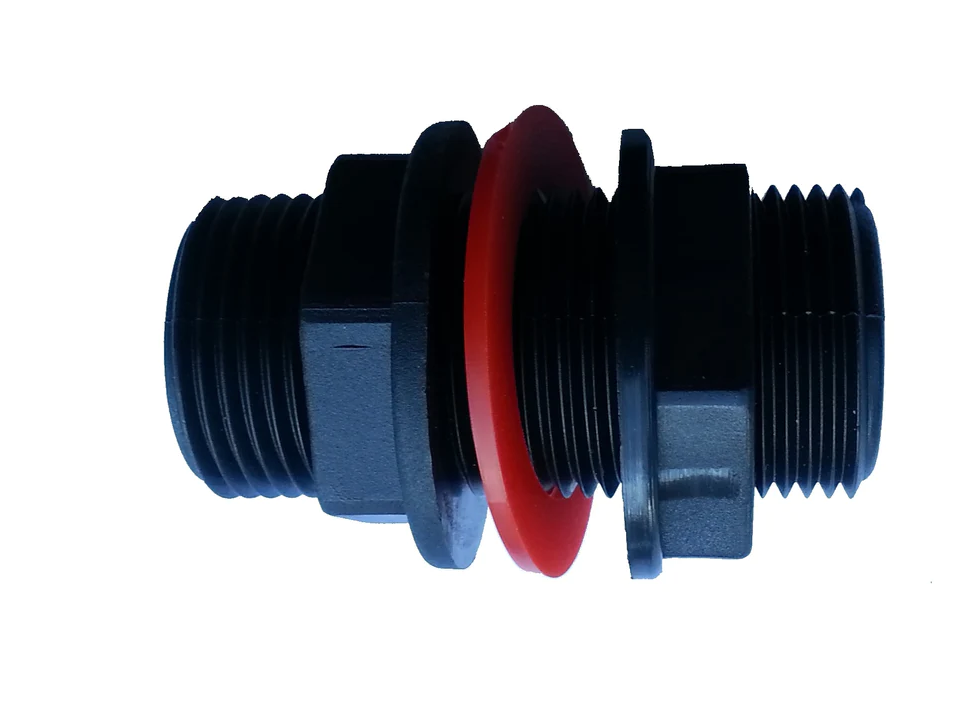

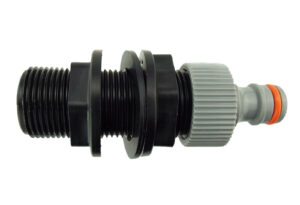

Designed around British Standard Pipe (BSP) thread sizing, this fitting is made for a secure installation with washers and a locking nut to help reduce the risk of leaks. Select the variant you need, including straight, threaded, extended and options that accept a quick connector or an on/off valve kit.
It’s ideal for rainwater harvesting setups where you need to connect a tank outlet to irrigation hose, pond equipment pipework, or general water supply lines. The barb end is intended for pushing on flexible hose, then securing with a suitable hose clip or cable tie.
Choose the correct BSP thread size for your tank outlet and match the barb to the internal diameter of the hose or pipe you are fitting. For best results, ensure the tank wall is clean and the washers sit flat before tightening.
Additional information
| Weight | 100 g |
|---|---|
| Dimensions | 12 × 8 × 5 cm |

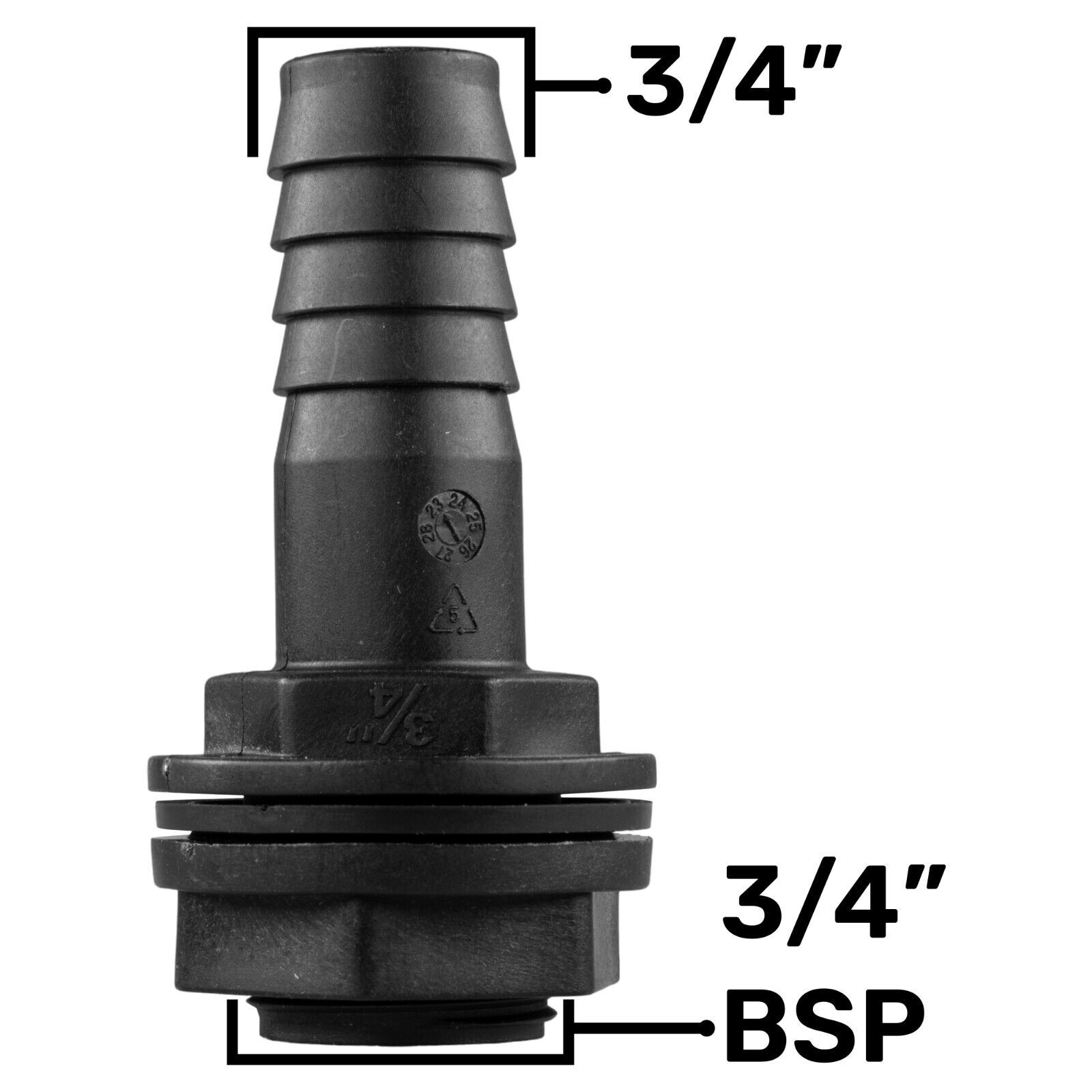

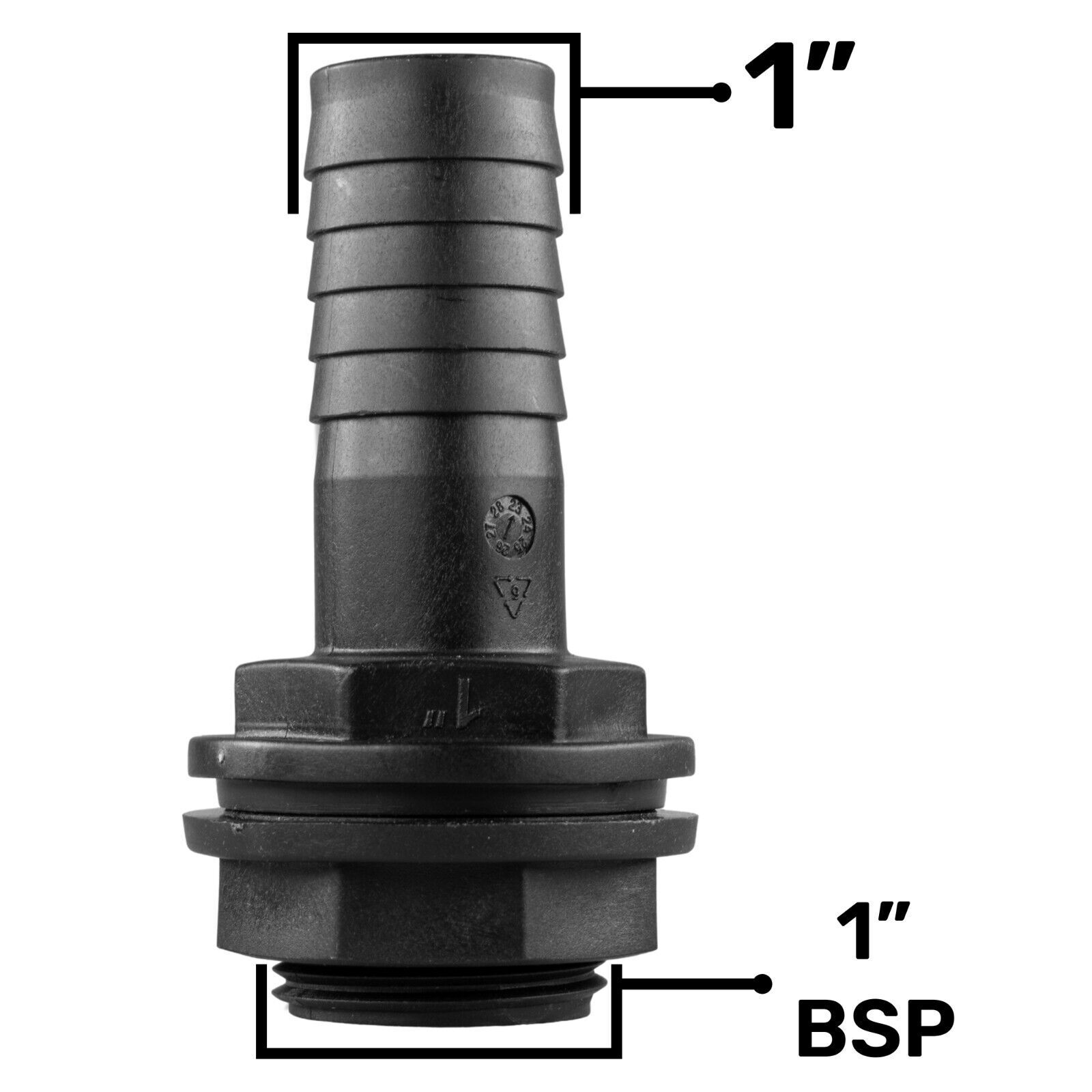

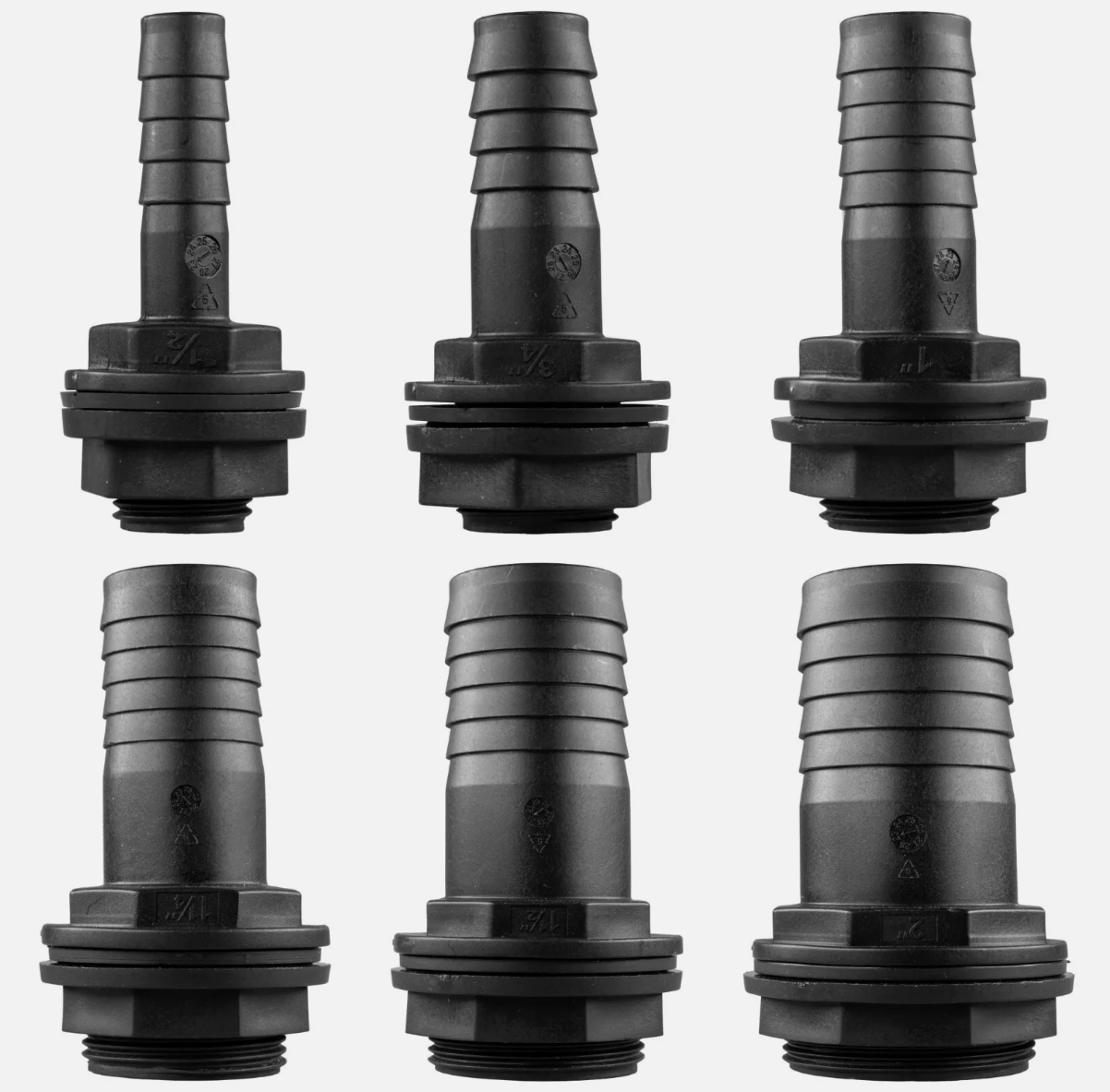

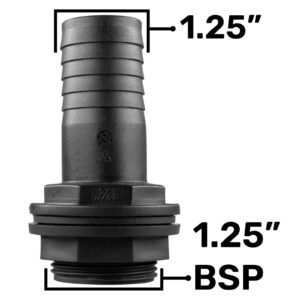

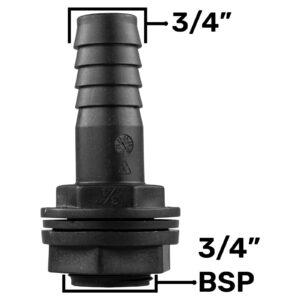

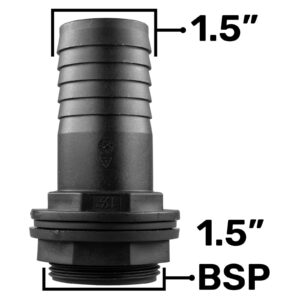

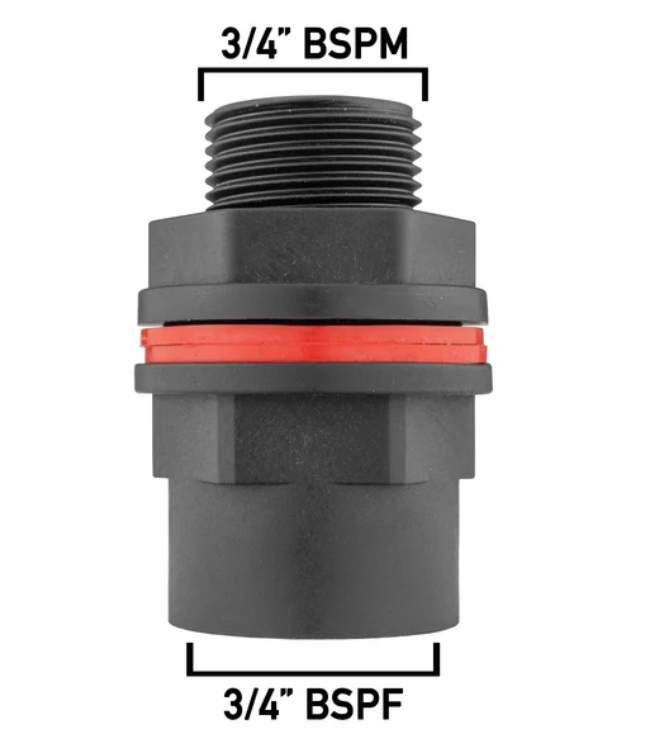

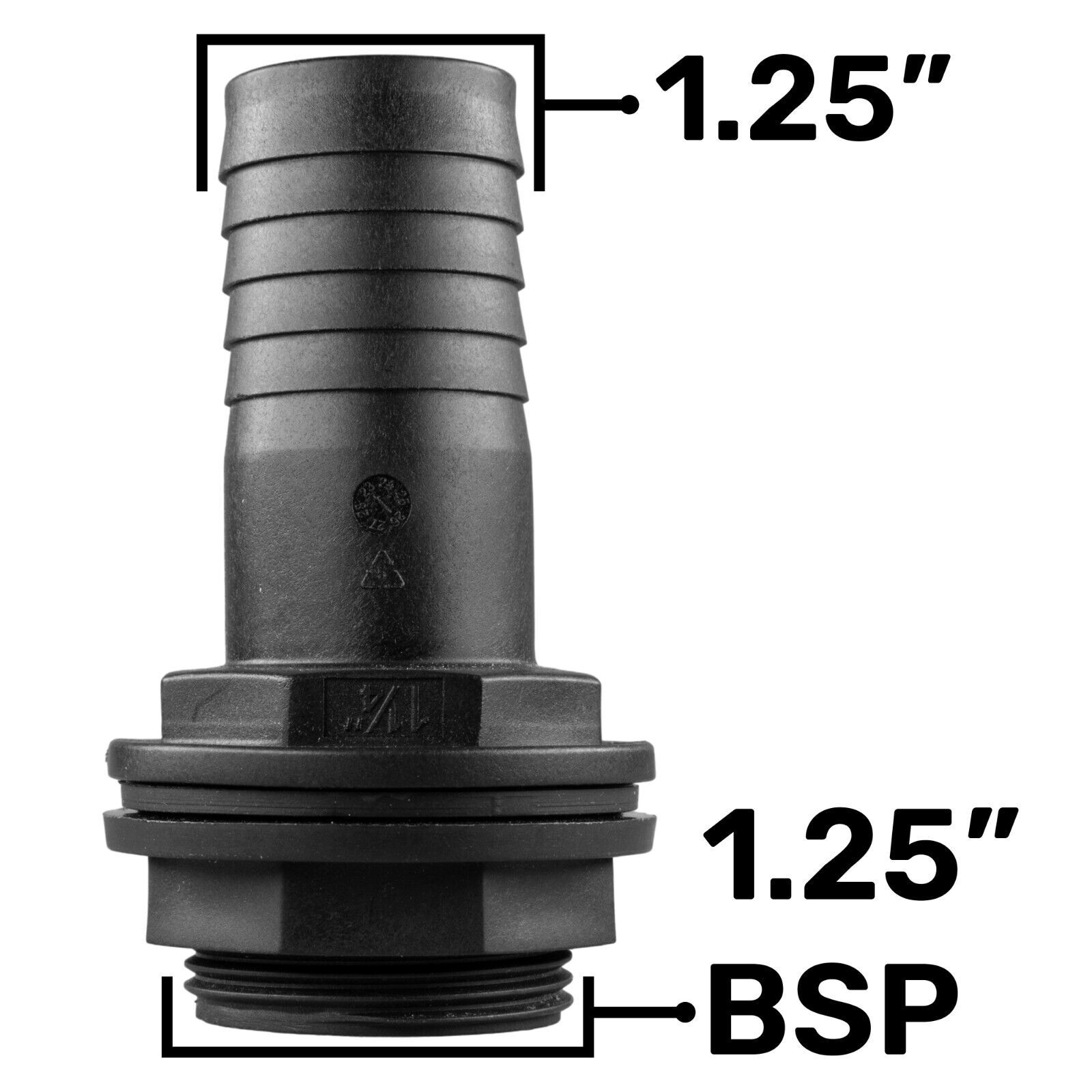

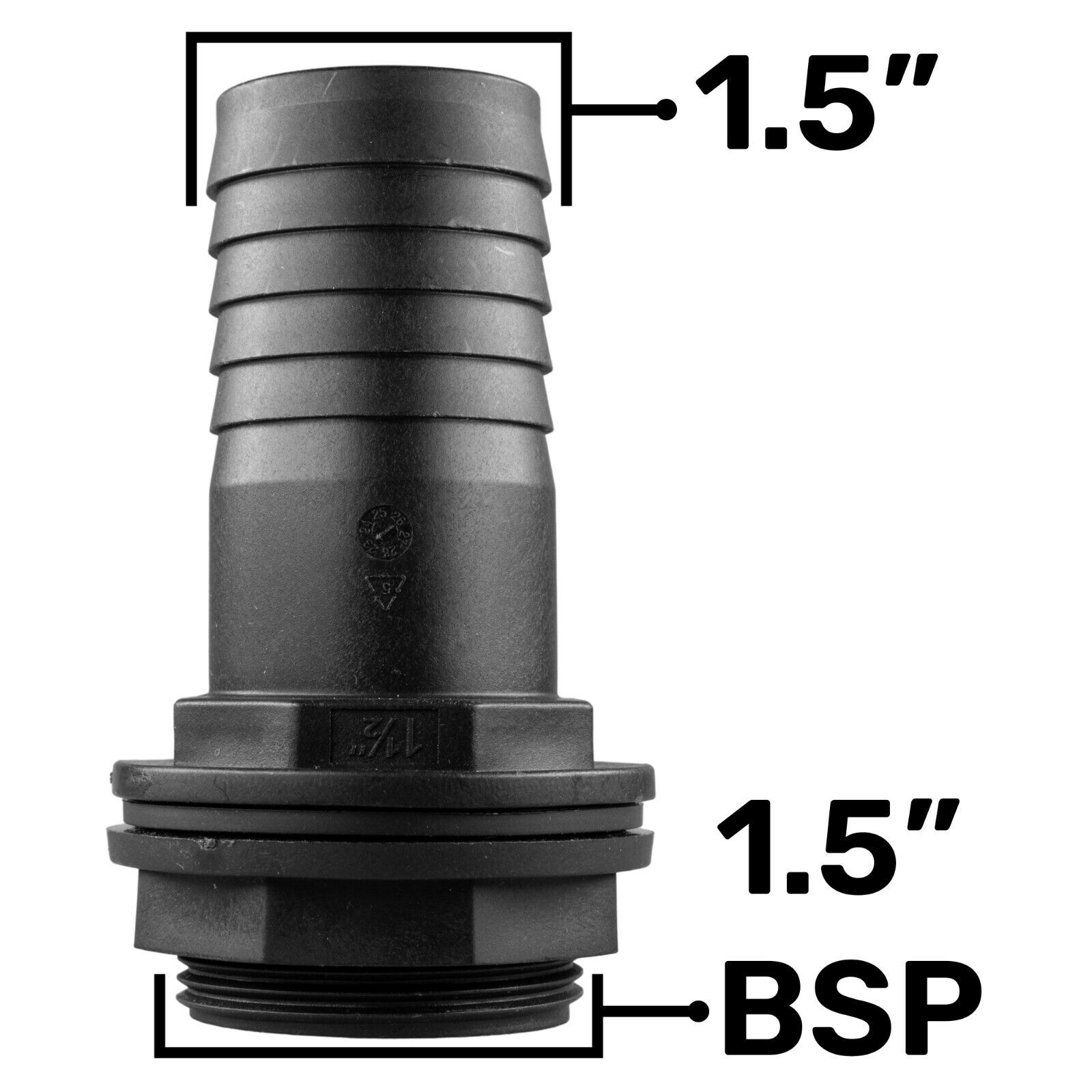

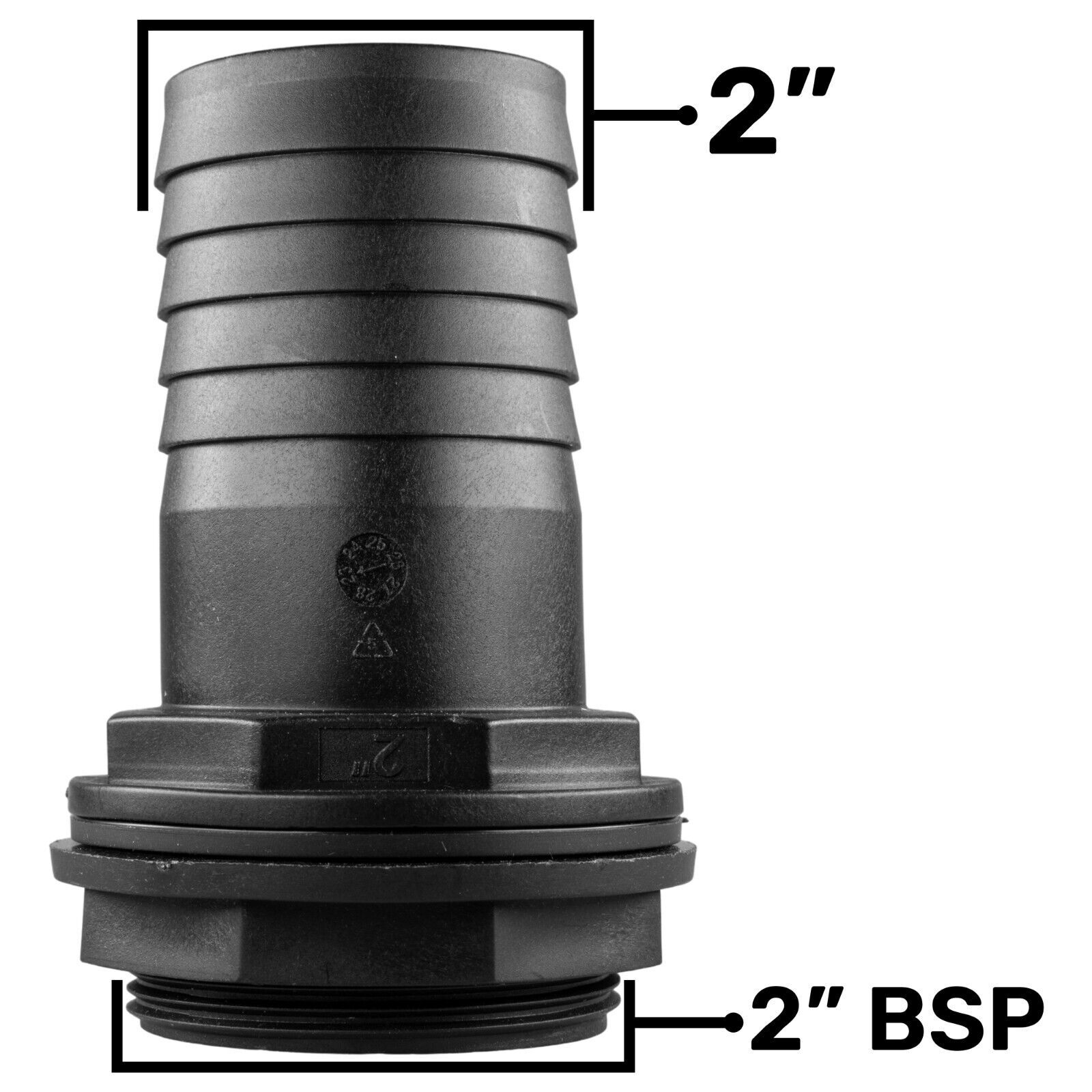

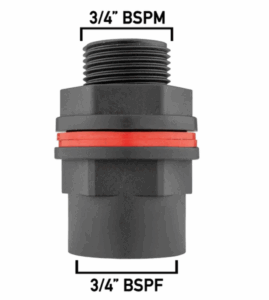

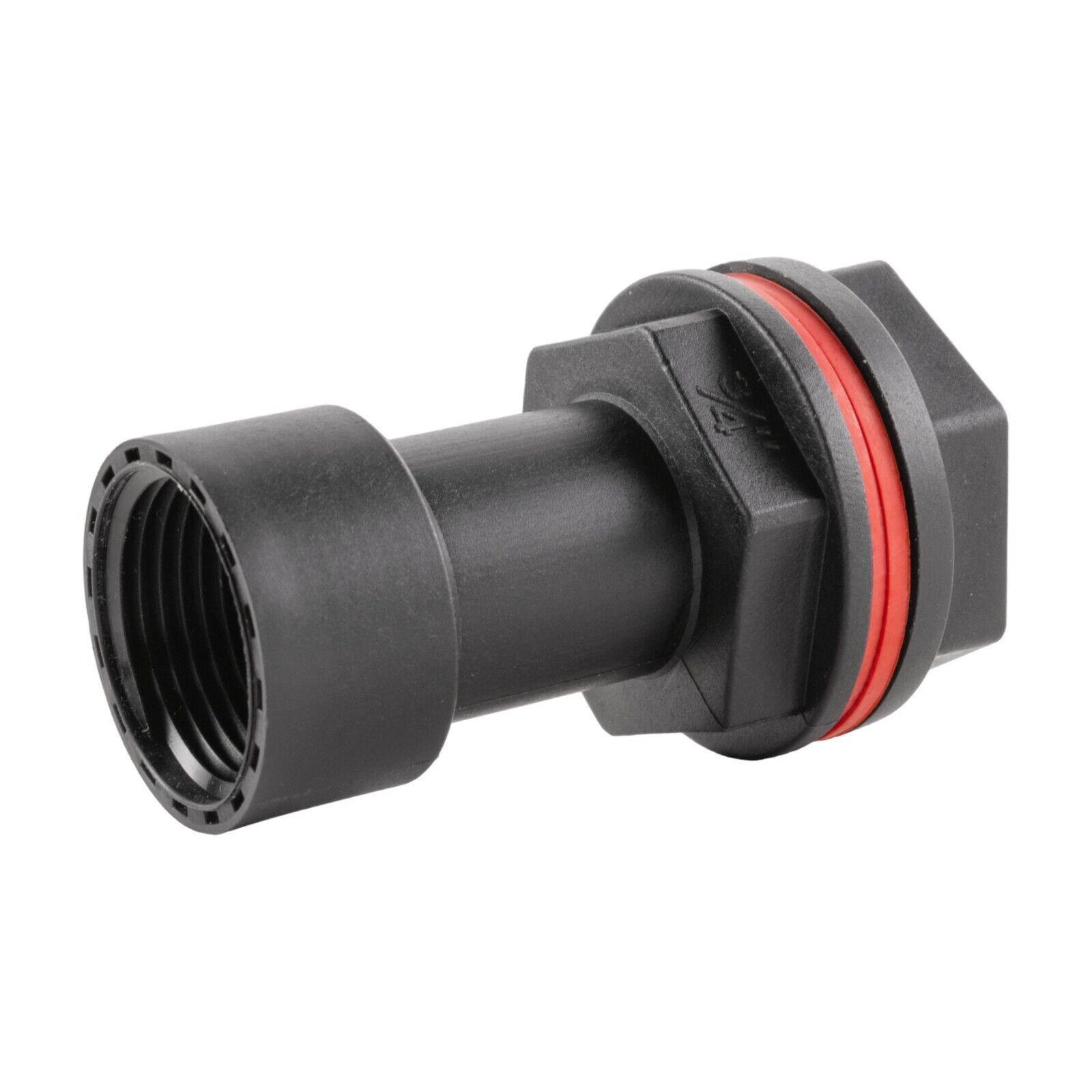

| Item Diameter | Straight 3/4", Straight 1", Straight 1.25", Straight 1.5", Straight 2", Straight 3/4" to 25mm, Threaded 1/2", Threaded 1/2" + quick connector, Threaded 3/4", Threaded 3/4" + quick connector, 3/4 Kit with valve and quick, Threaded 1", Threaded 1" + quick connector, Threaded 1.5", Threaded 2", Extended 1/2", Extended 3/4", Female 1/2", Female 3/4", Straight 1/2" |
| Colour | Black |
| Connection Type | Tank wall fitting with hose barb outlet (variant dependent) |
| Installation Area | Above Ground & Underground |
| Manufacturer Warranty | 6 Months |
| Number of Items in Set | 1 |
| Recommended Hole Size | 1/2" BSP: 21mm; 3/4" BSP: 26mm; 1" BSP: 33mm; 1.25" BSP: 41.9mm; 1.5" BSP: 47.8mm; 2" BSP: 59.6mm |
| Suitable For | Garden Irrigation, House Water Supply, Pond Pipe, Pond Pump, Waste Water Collection Pit, Water Supply Pipe |

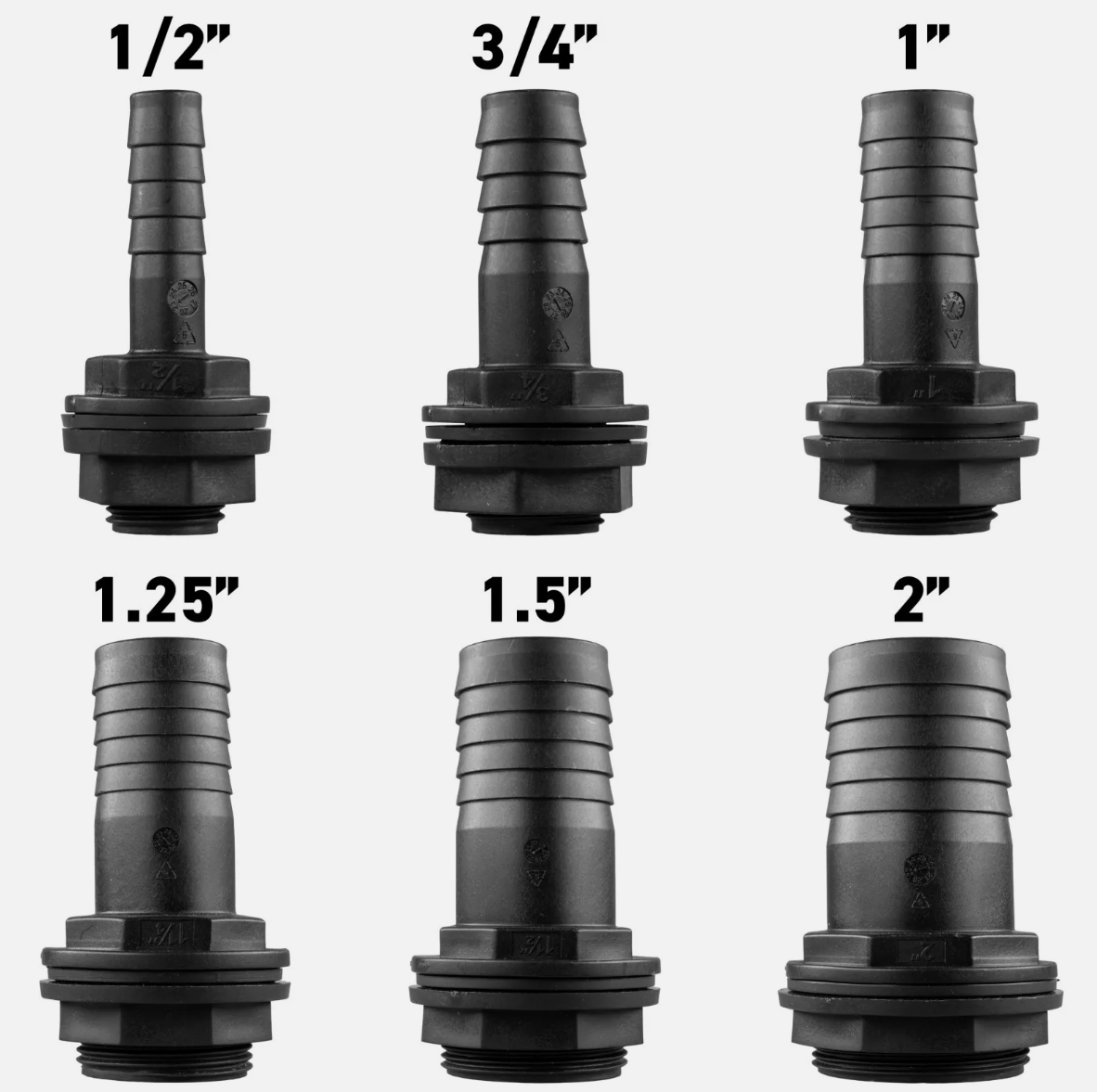

| Thread Sizes Available | 1/2", 3/4", 1", 1.25", 1.5", 2" |
| Thread Standard | BSP (British Standard Pipe) |
