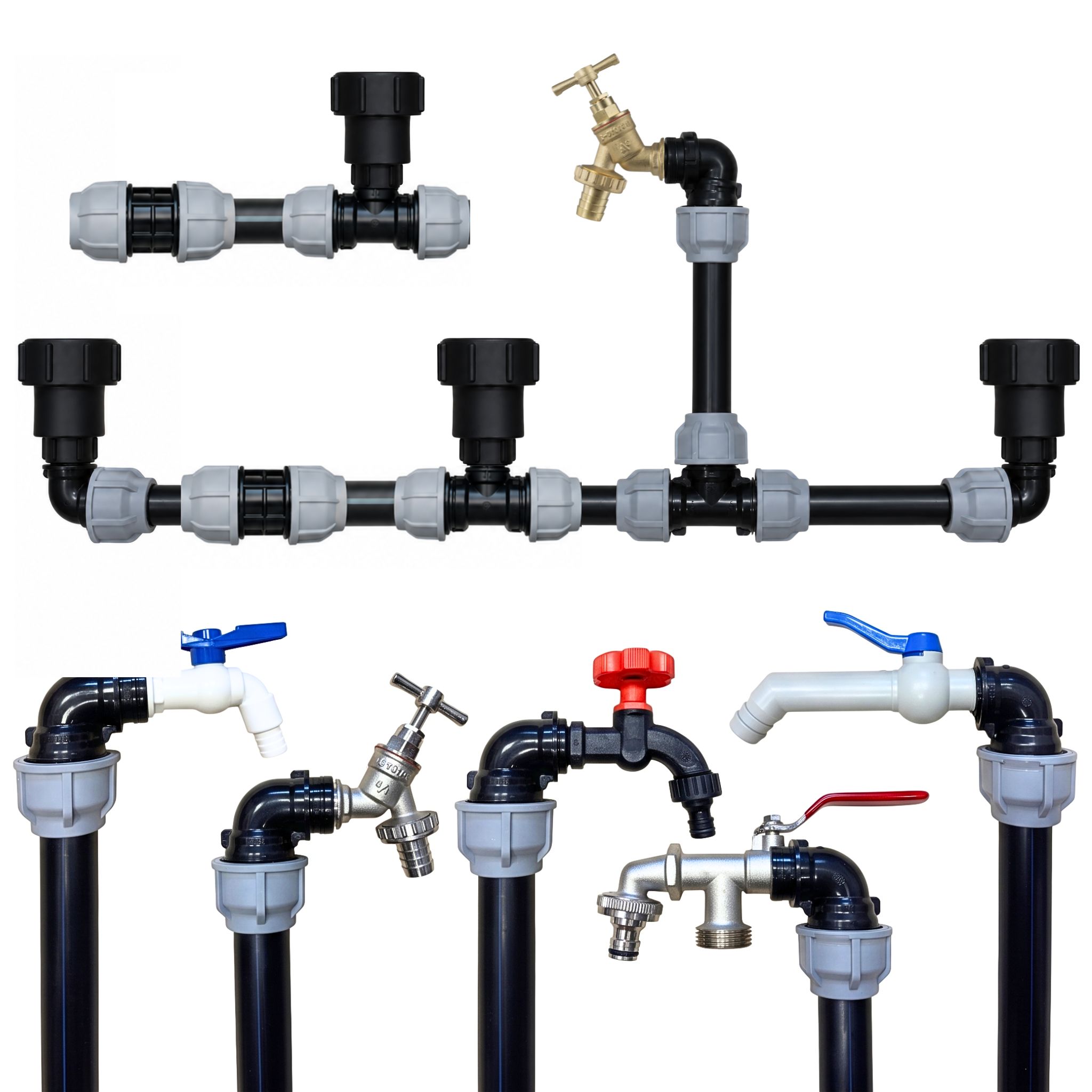

Rigid IBC Linking Kit with MDPE Pipe and Tap
A rigid linking kit for two, three or four IBC tanks: S60X6 cap adapters, compression fittings and MDPE pipe join the tank outlets into one run, so the whole bank is drawn through a single tap. Choose 25 mm, 32 mm or 50 mm pipe and the tap that suits you.
Product Details

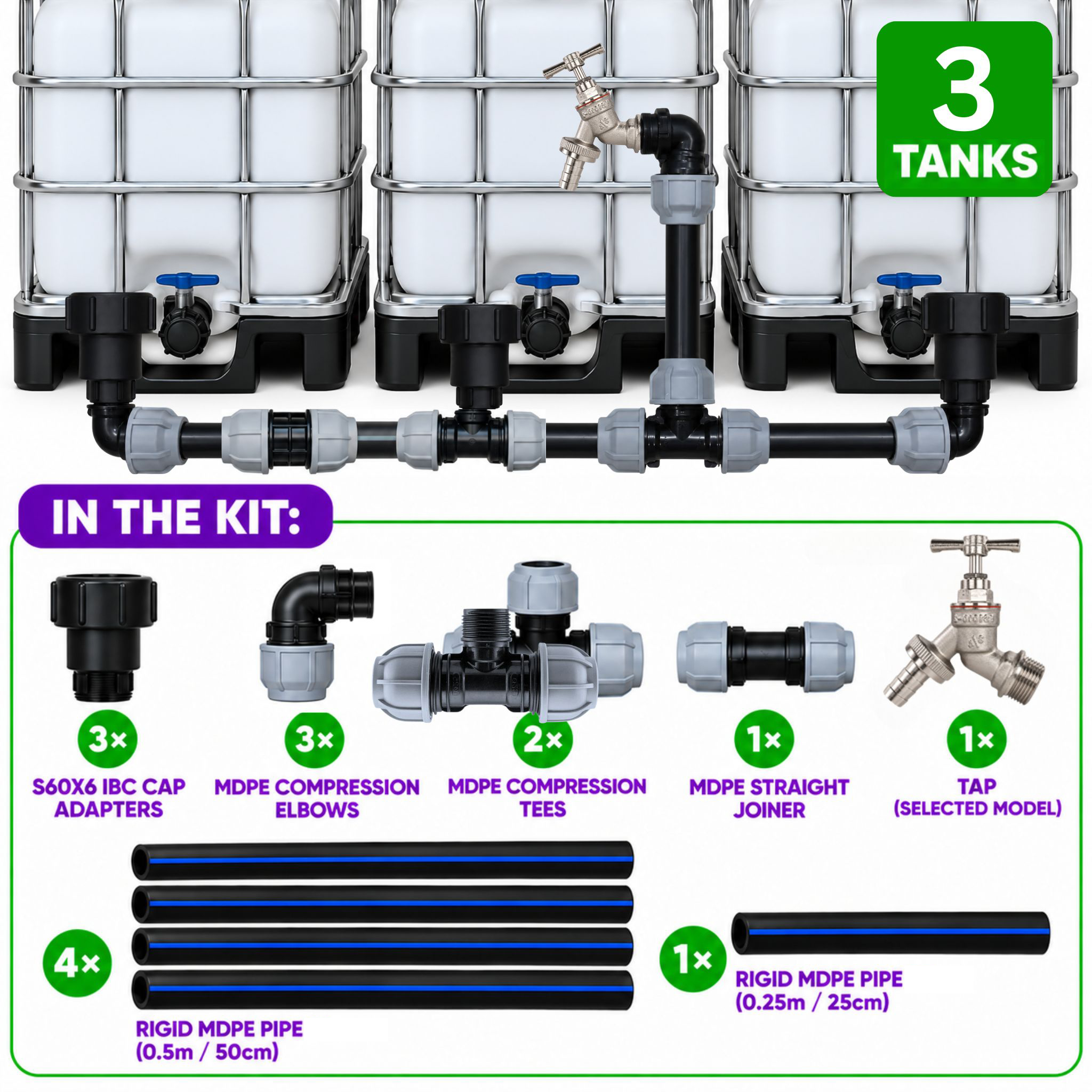

Keeping more than one IBC tank usually means moving the hose from tank to tank. This rigid linking kit joins the bottom outlets of two, three or four IBC tanks with MDPE pipe, so the tanks are connected to one another and the whole bank can be drawn through a single tap.

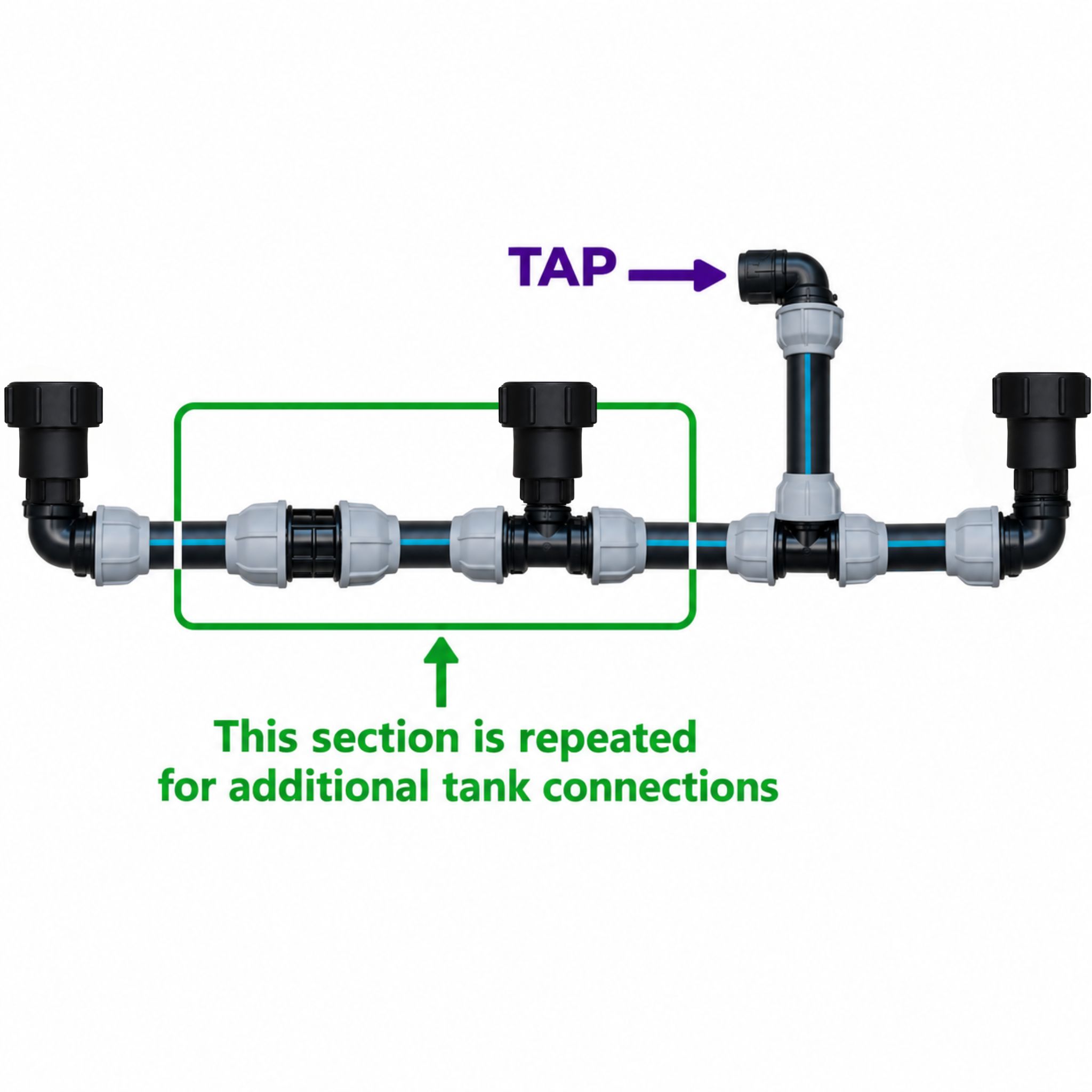

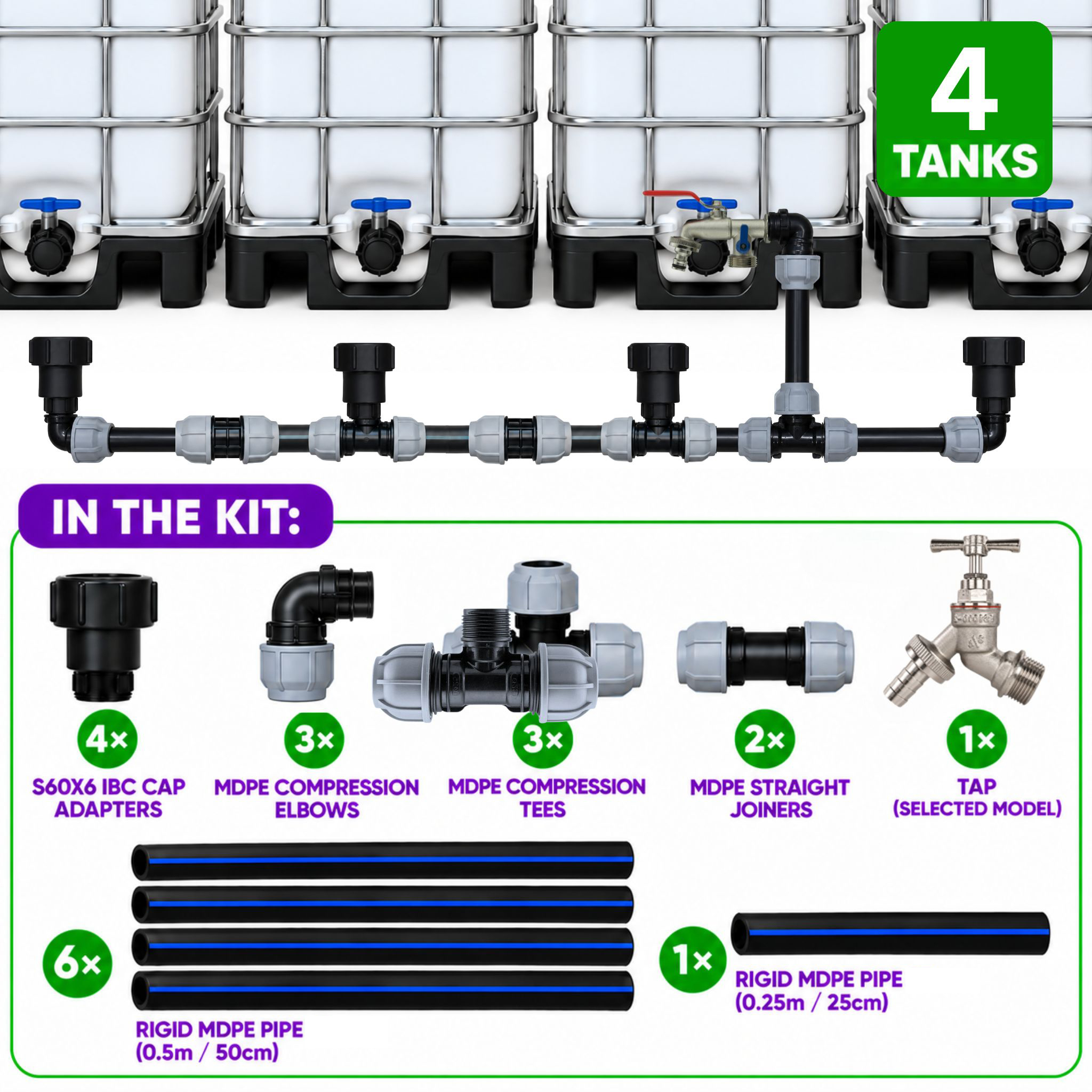

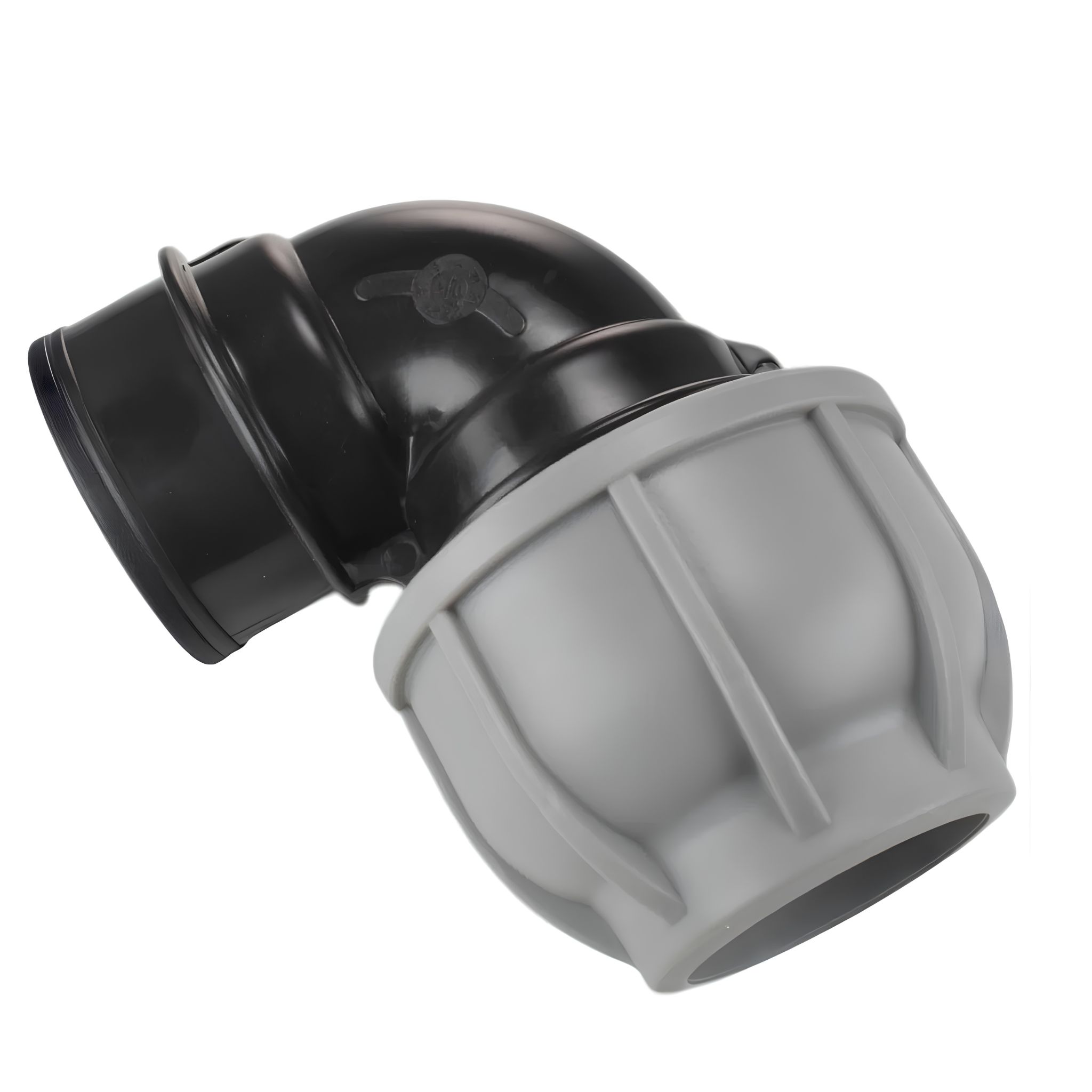

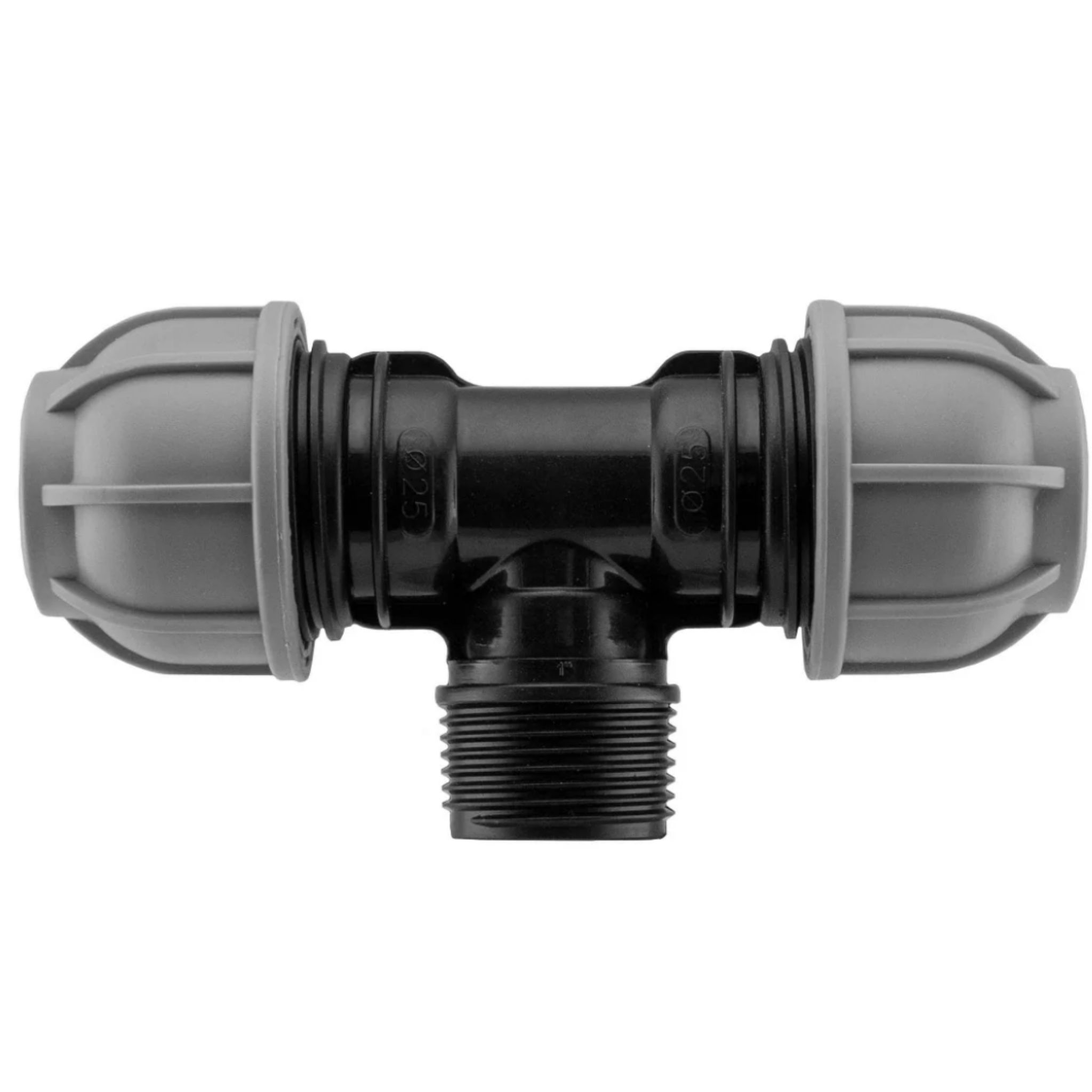

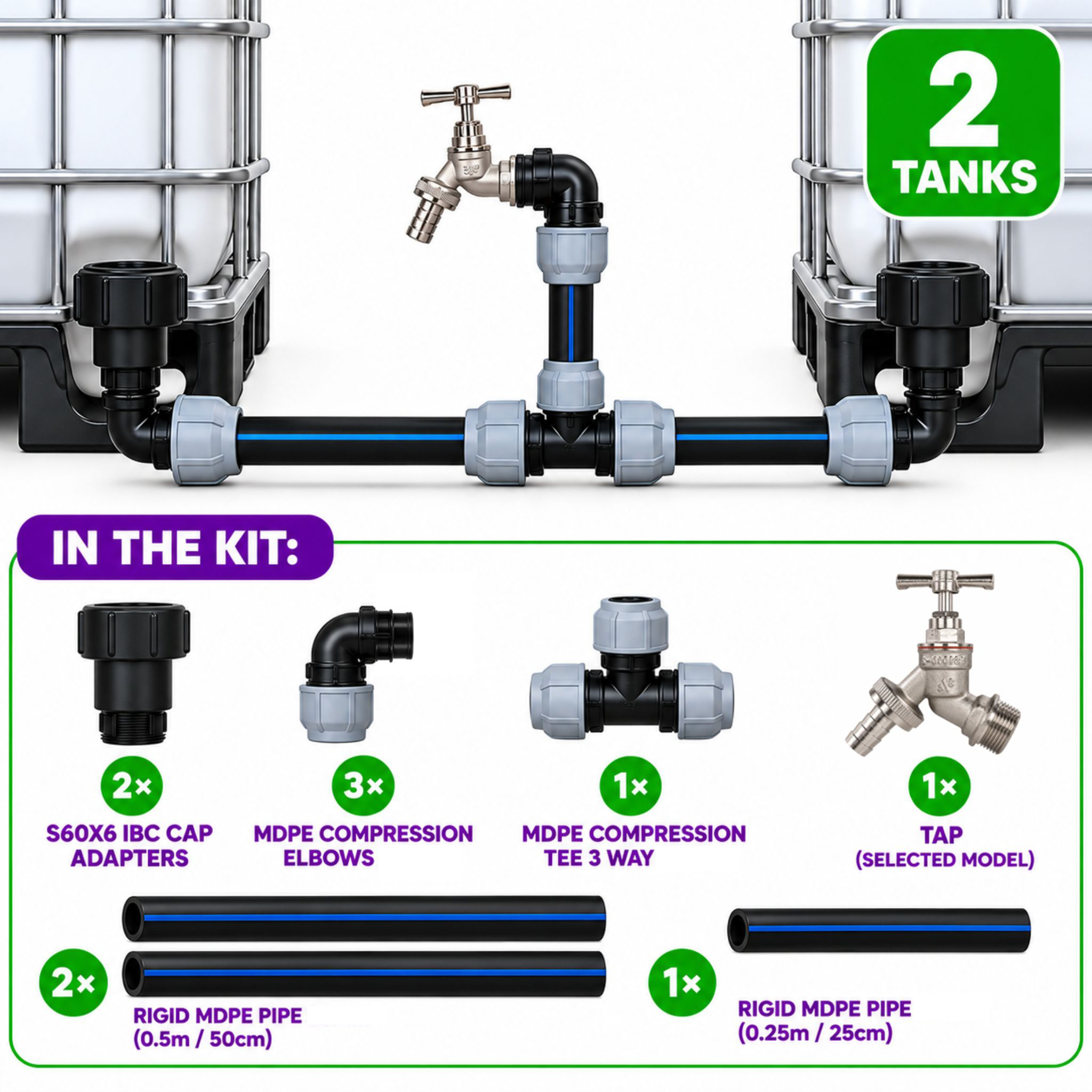

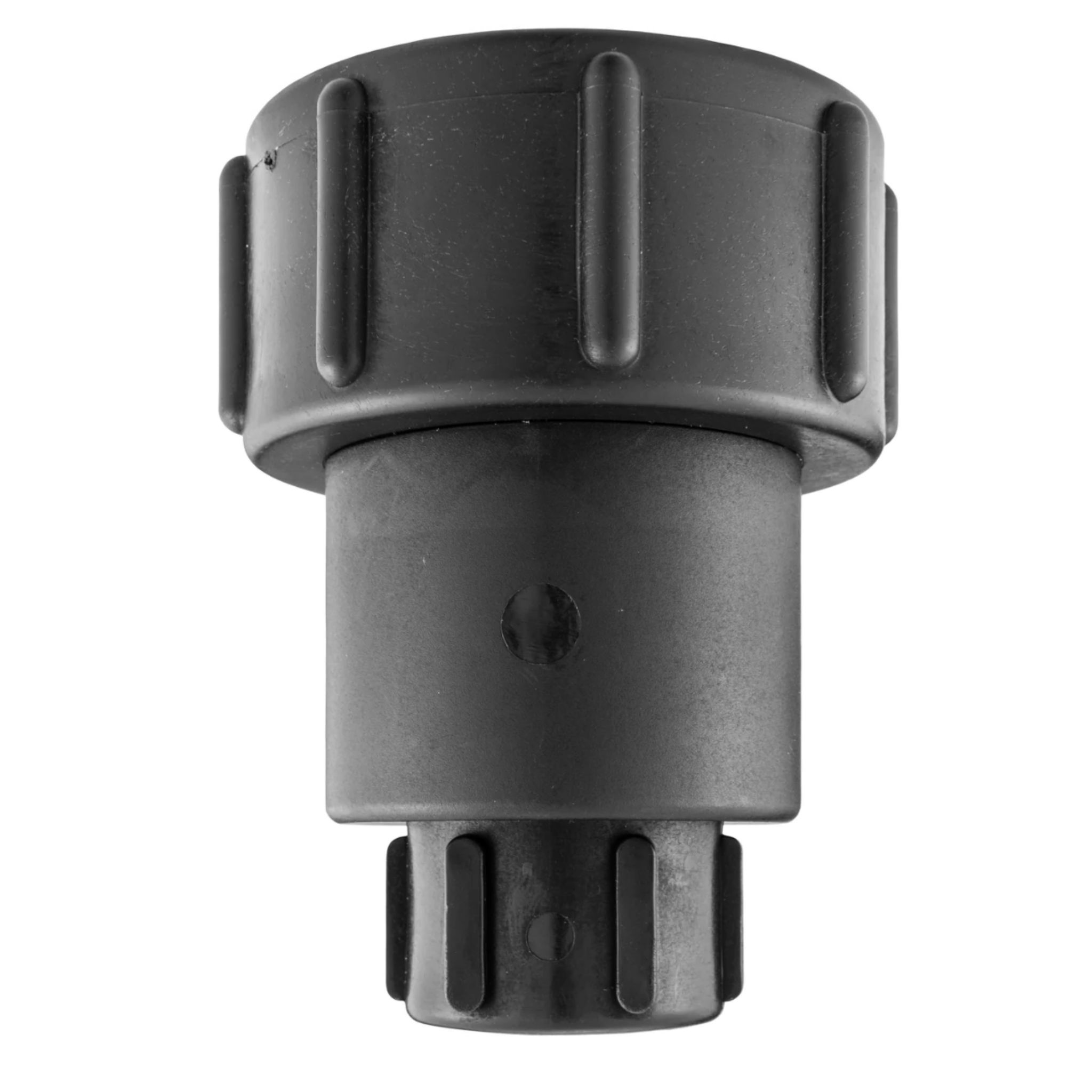

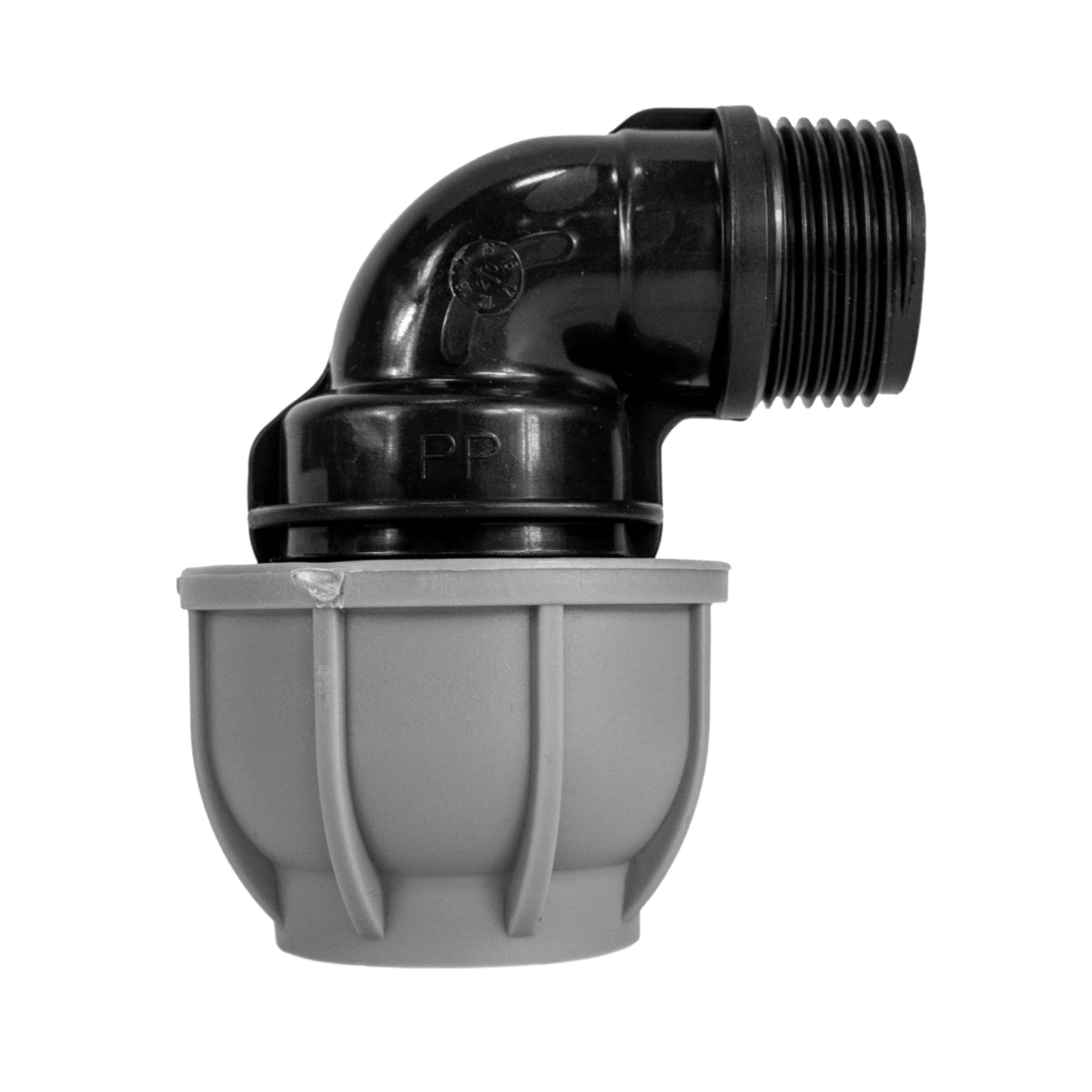

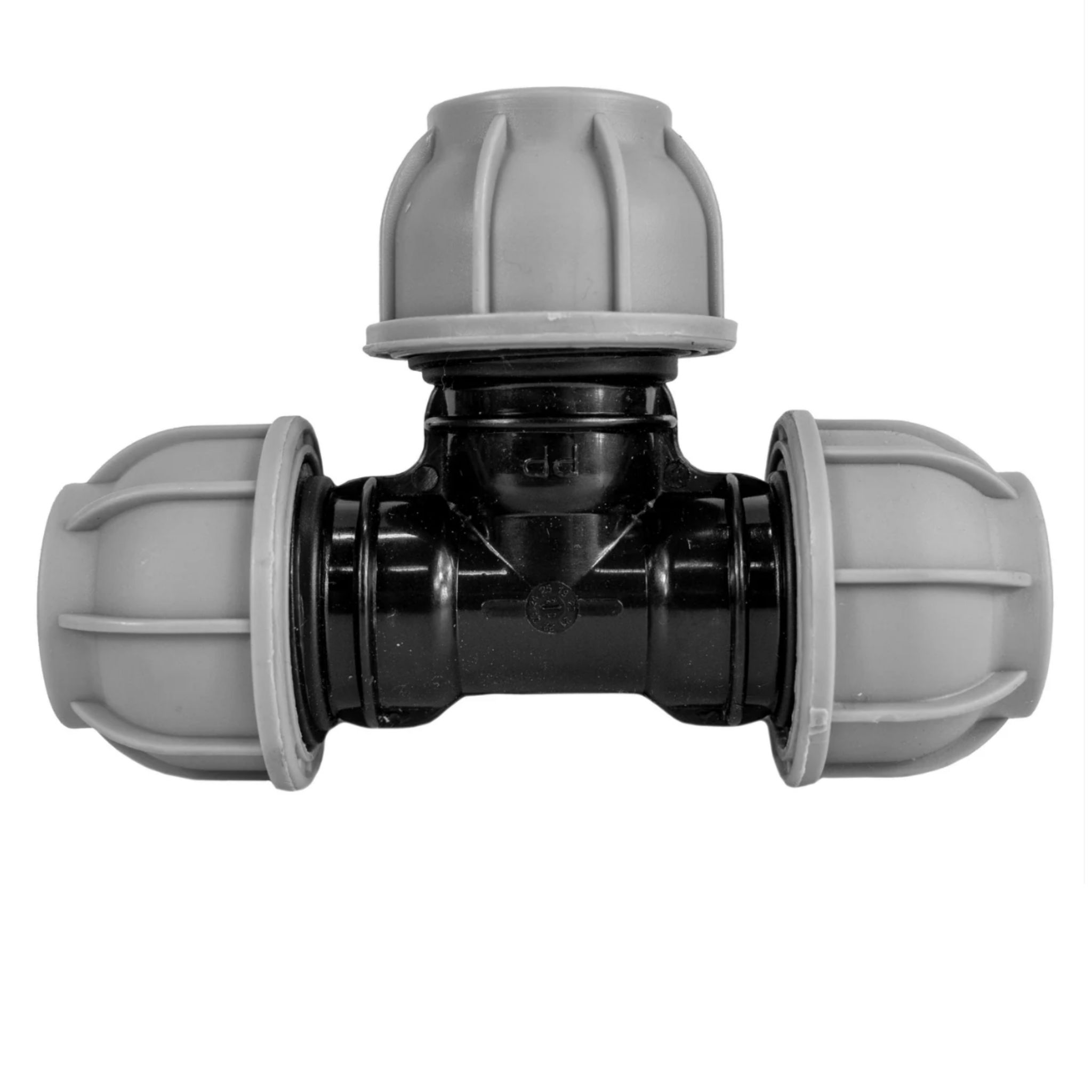

Each tank connection starts with an S60X6 cap adapter that screws onto the outlet of the tank’s own valve. The valve stays where it is, so any tank can still be shut off on its own, for example to clean or move it. Compression elbows, tees and threaded straight joiners carry the rigid MDPE pipe between the tanks and to the tap.

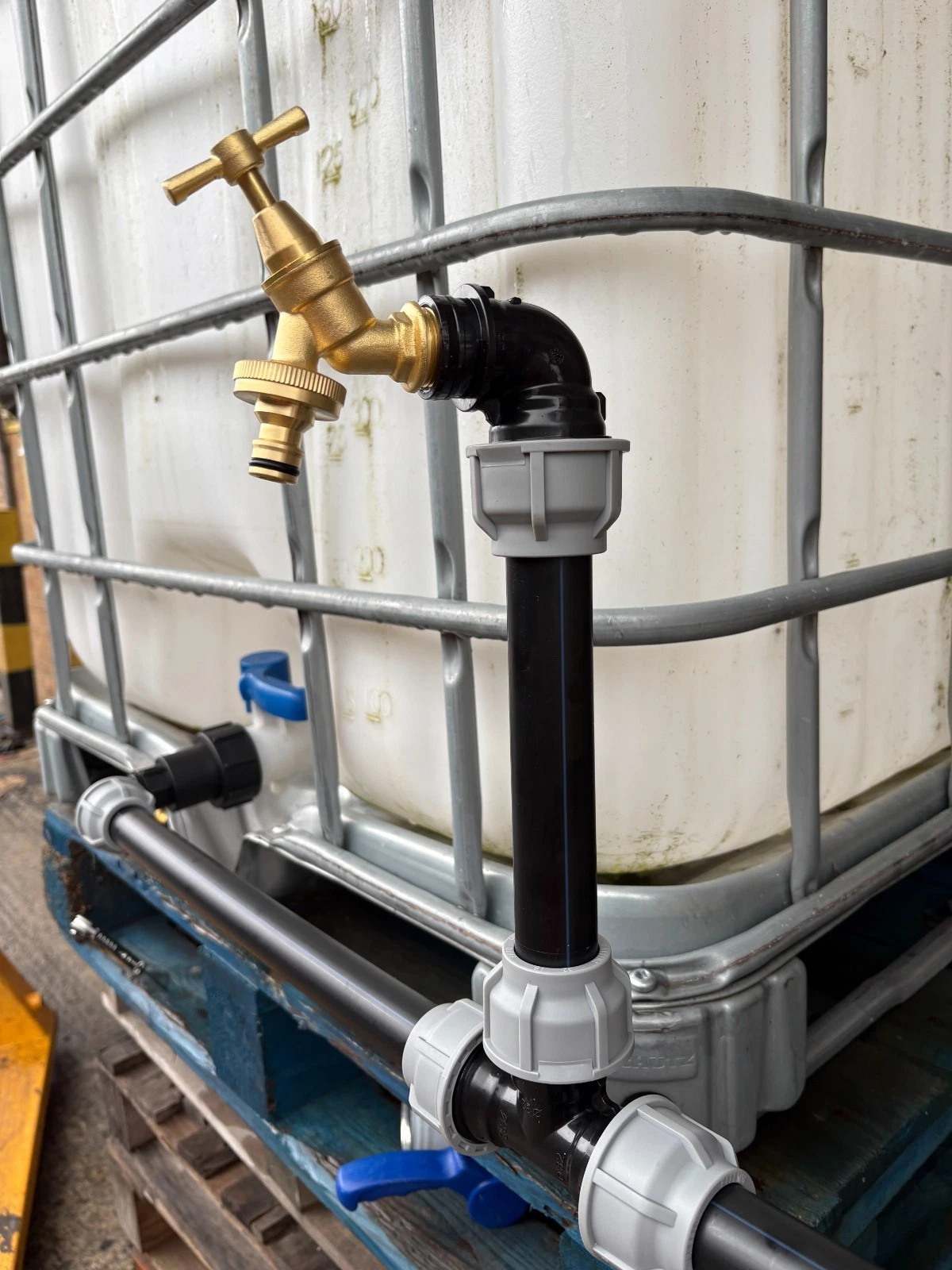

The compression joints tighten onto the pipe ends without glue, solvent or heat welding, and the finished run sits along the base of the tanks as a fixed, tidy line of pipe rather than loose hoses lying across the ground.

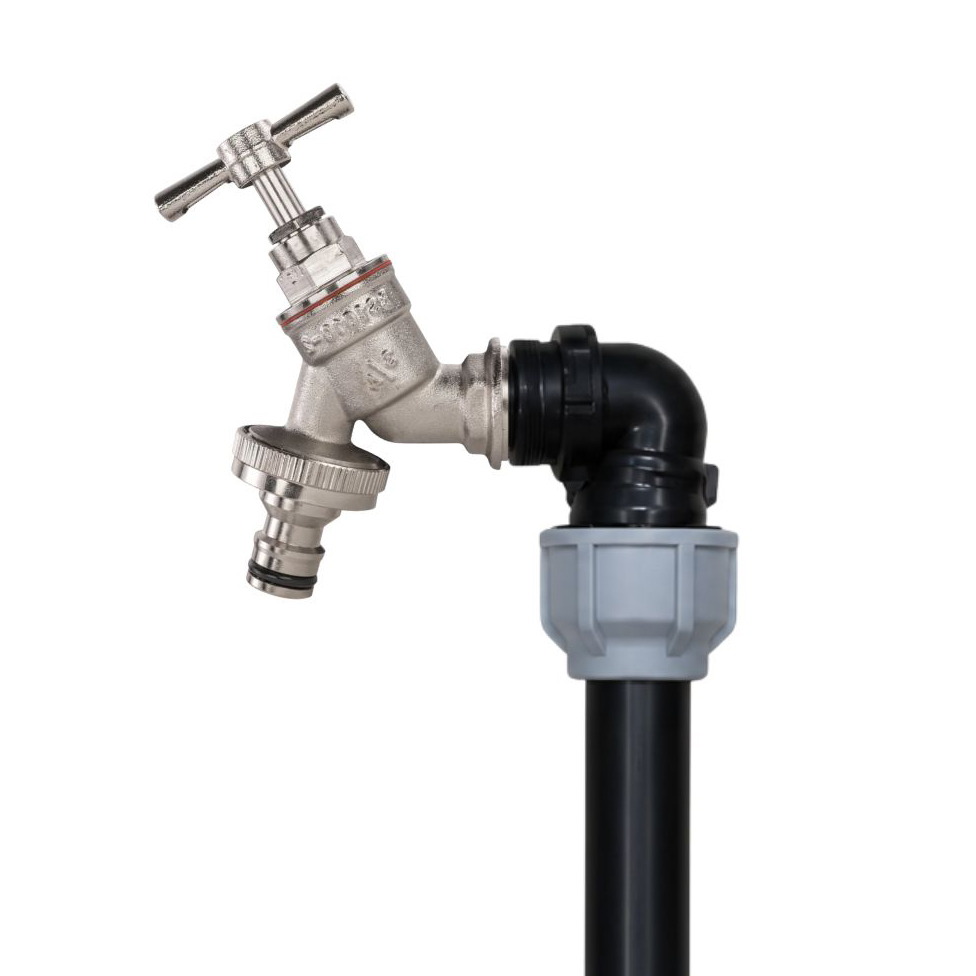

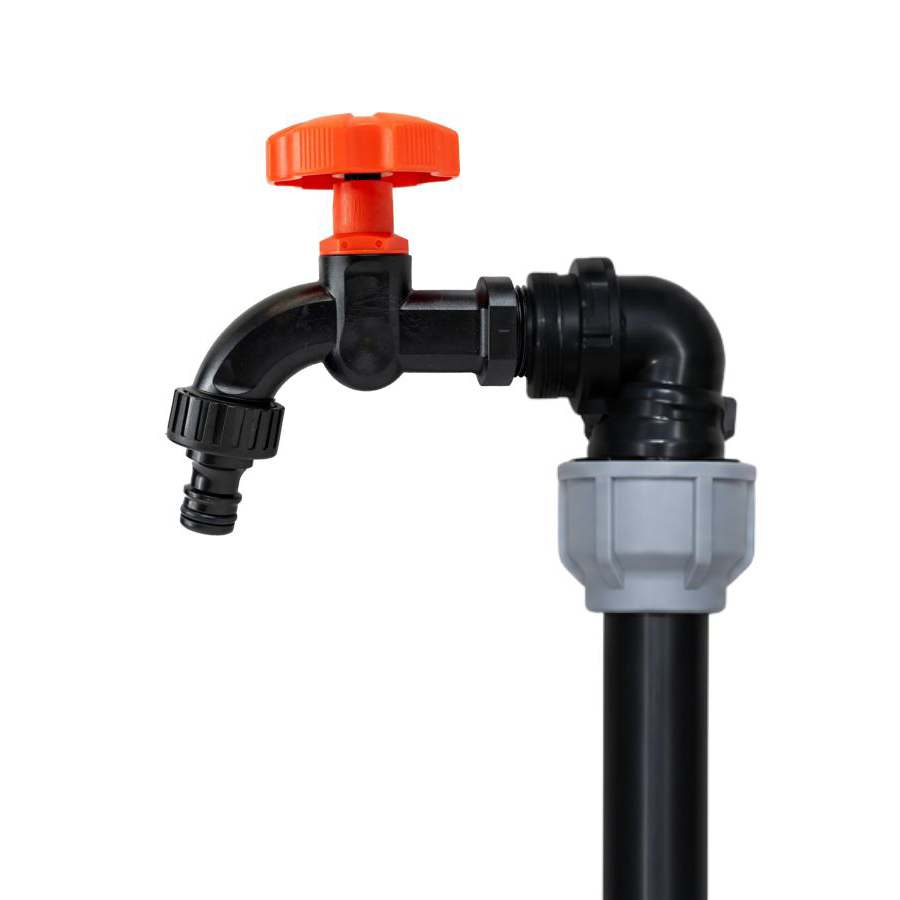

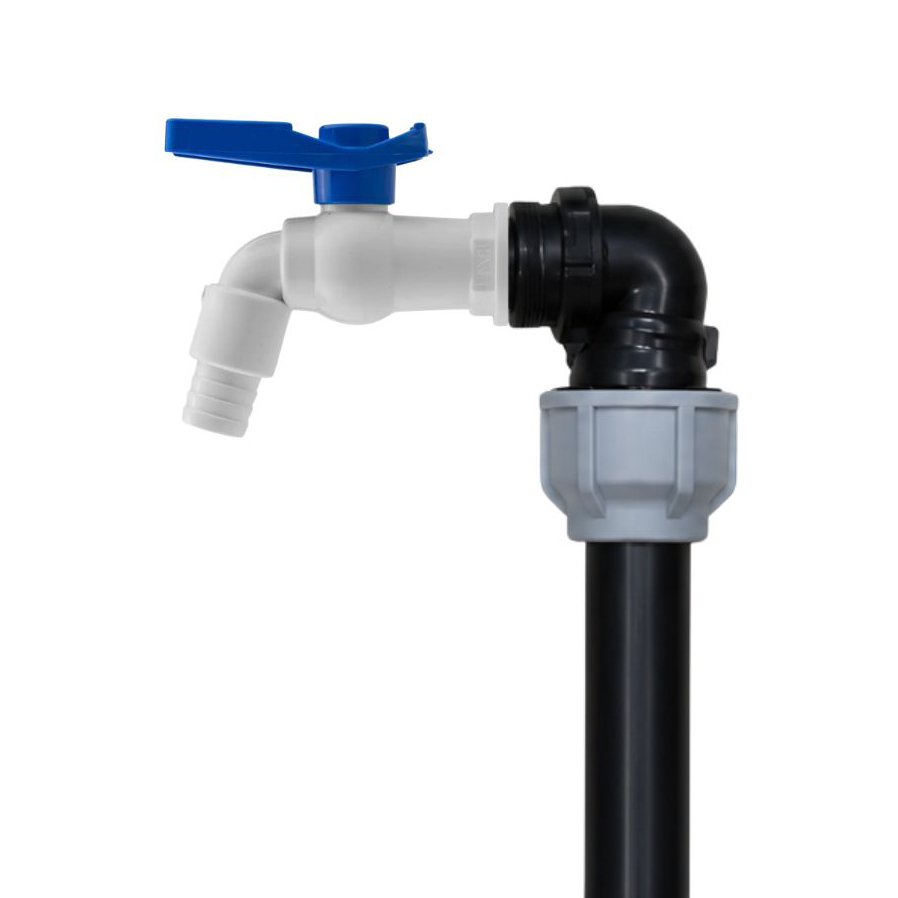

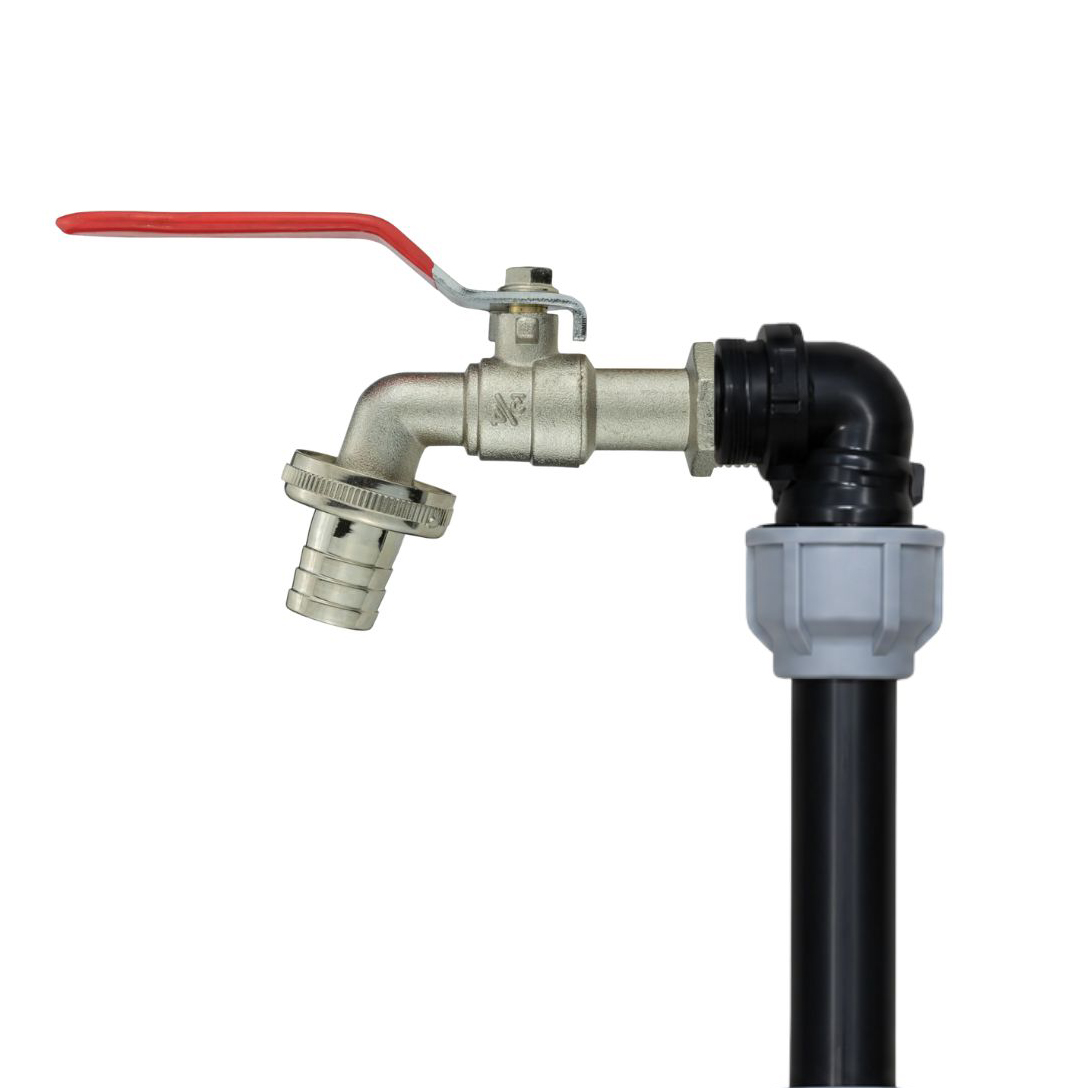

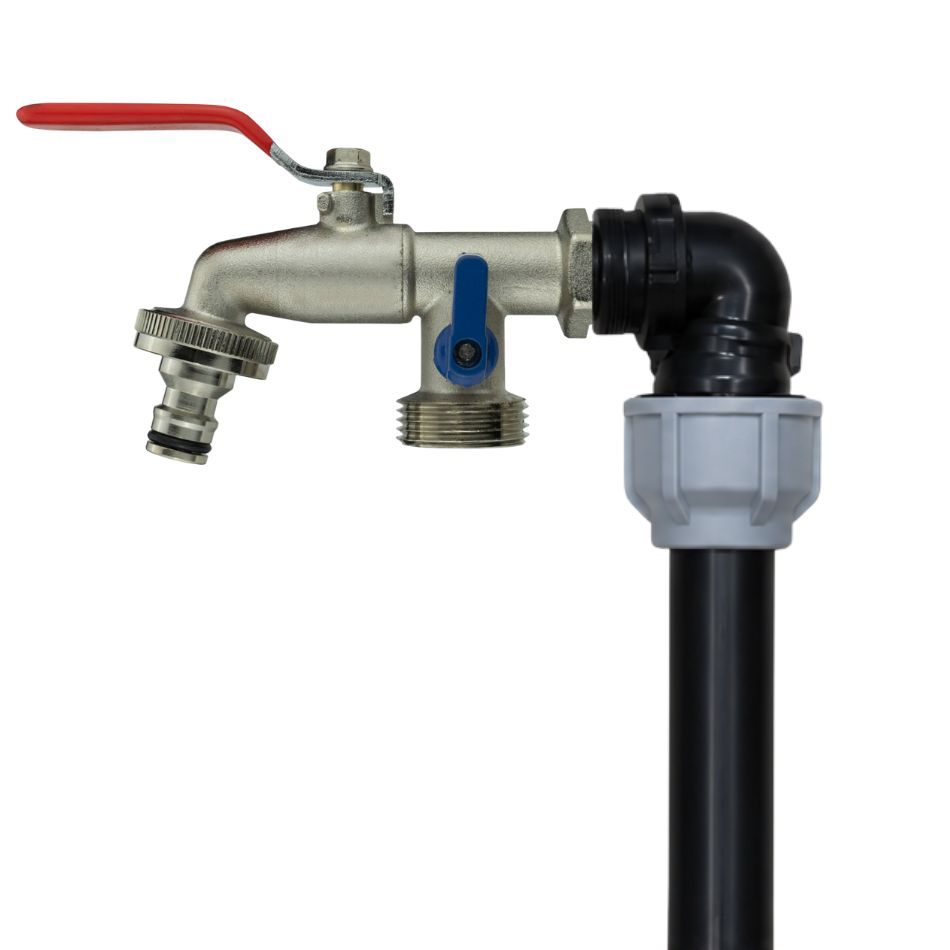

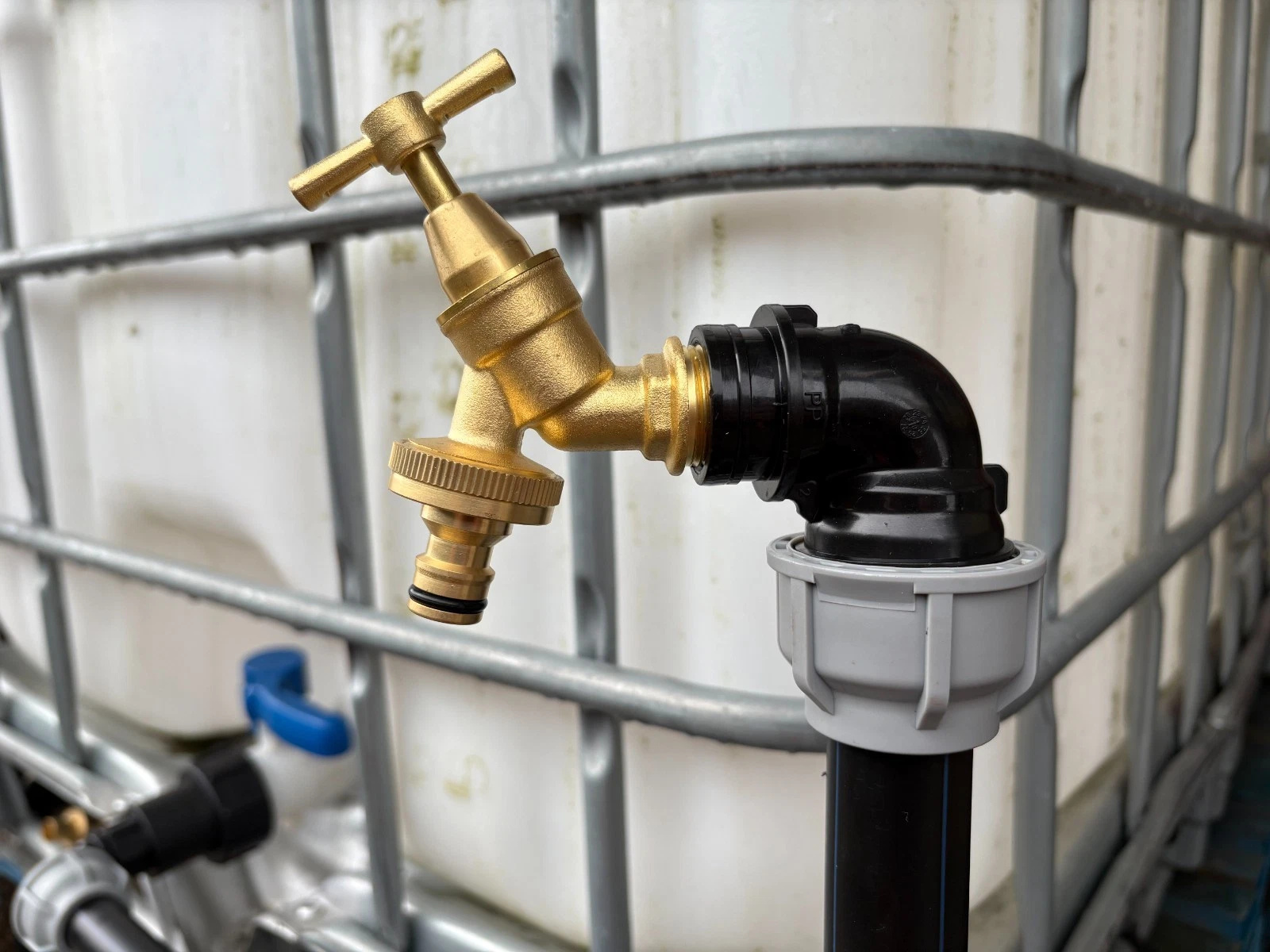

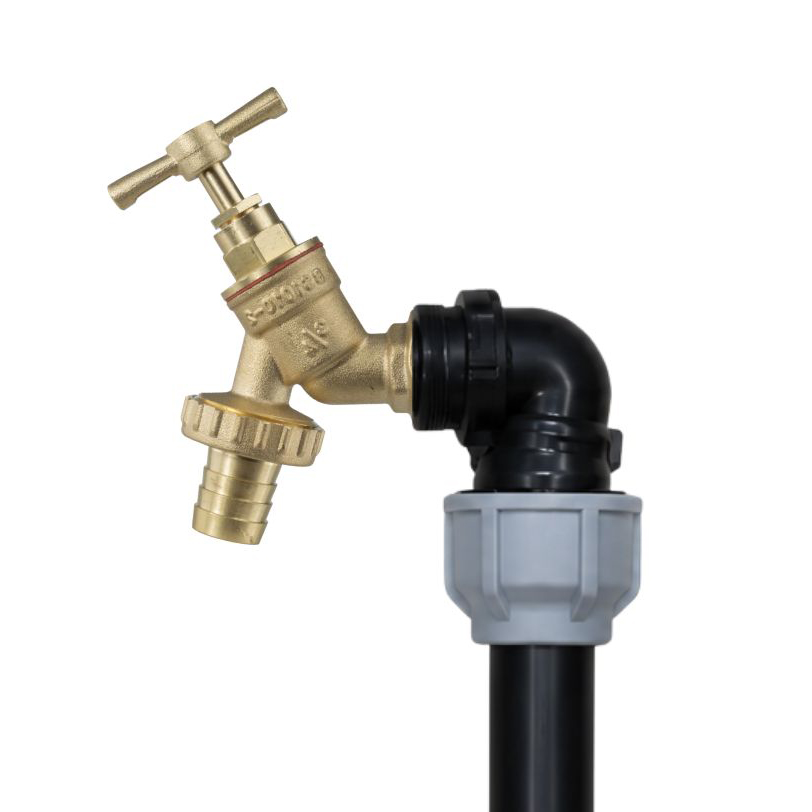

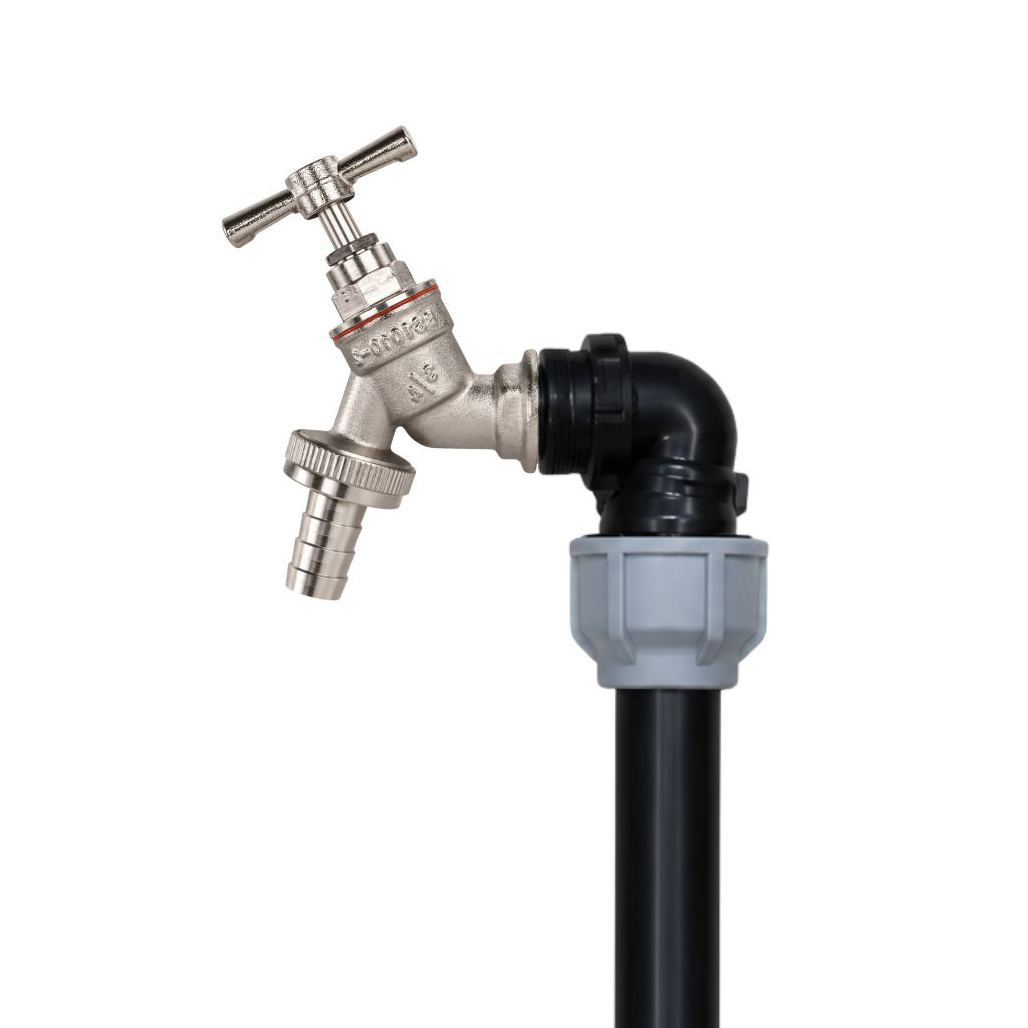

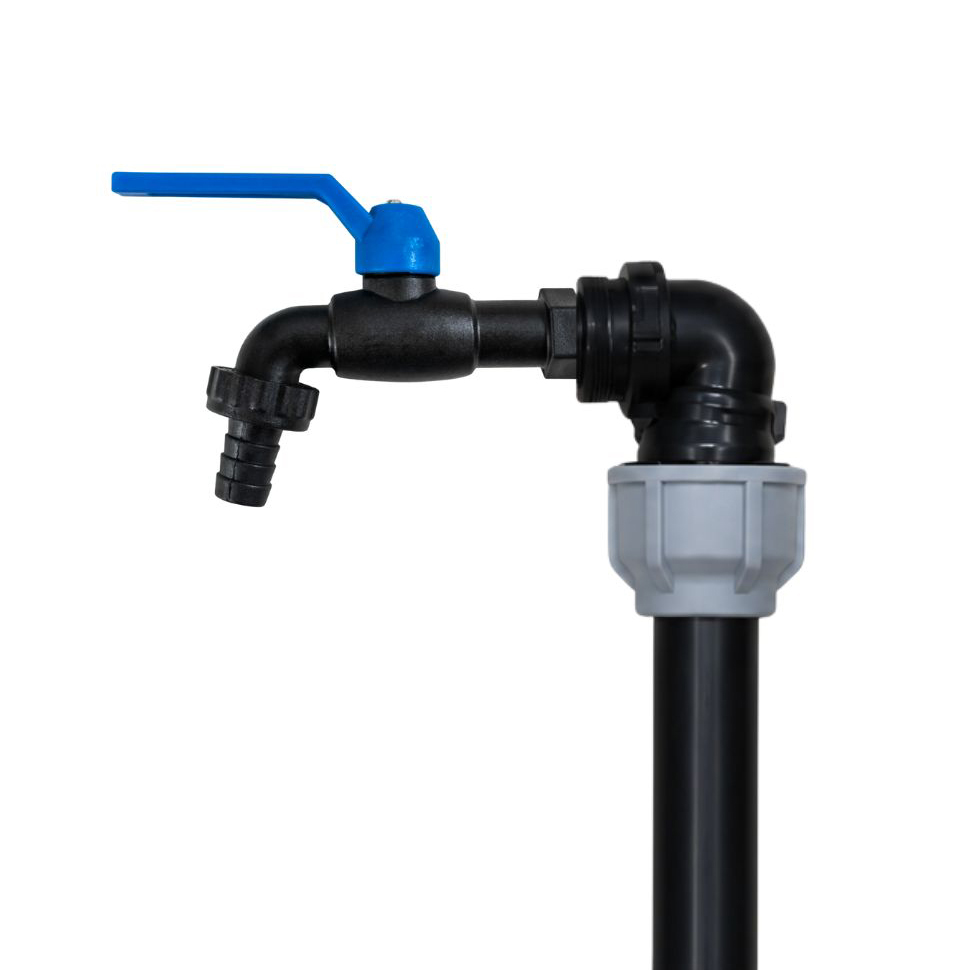

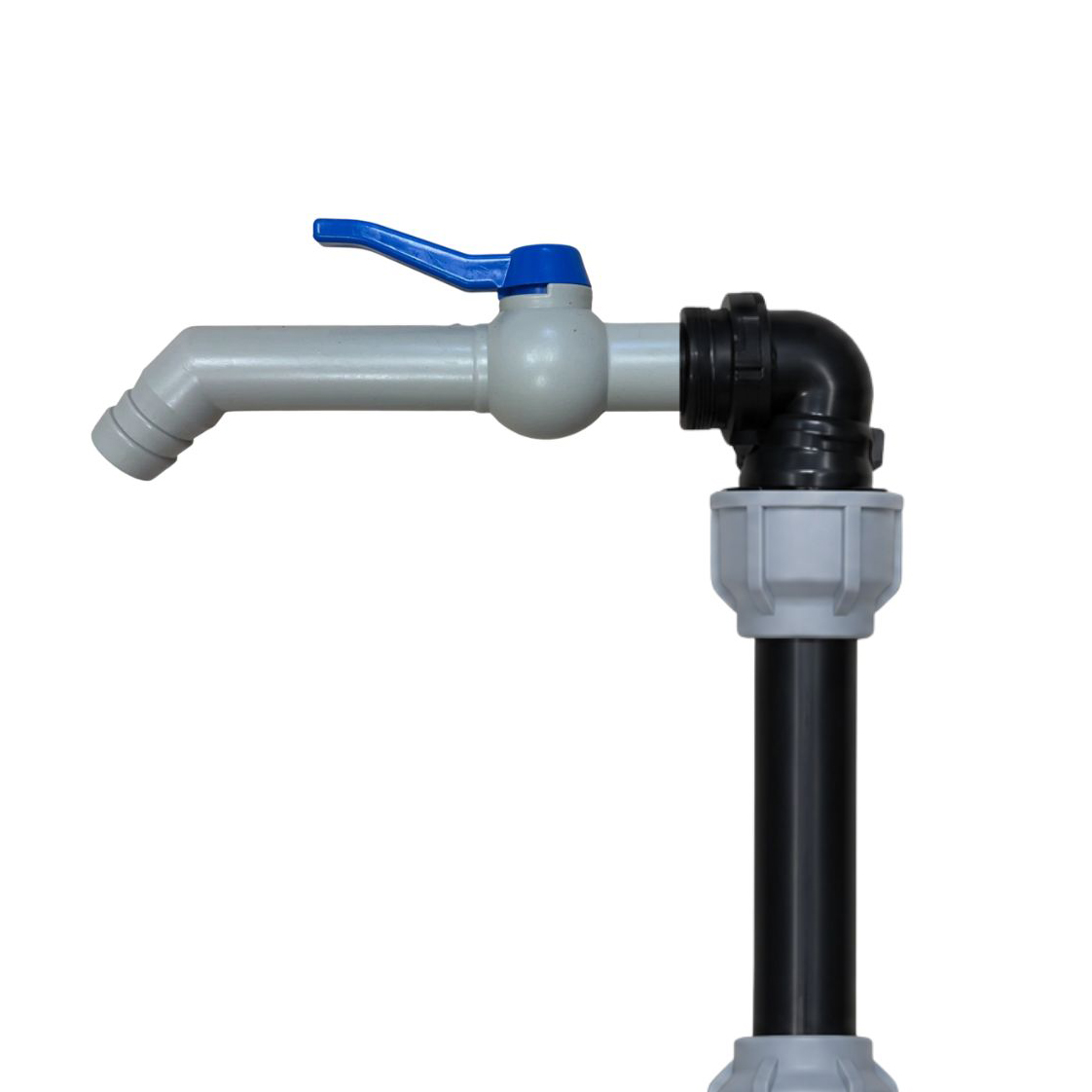

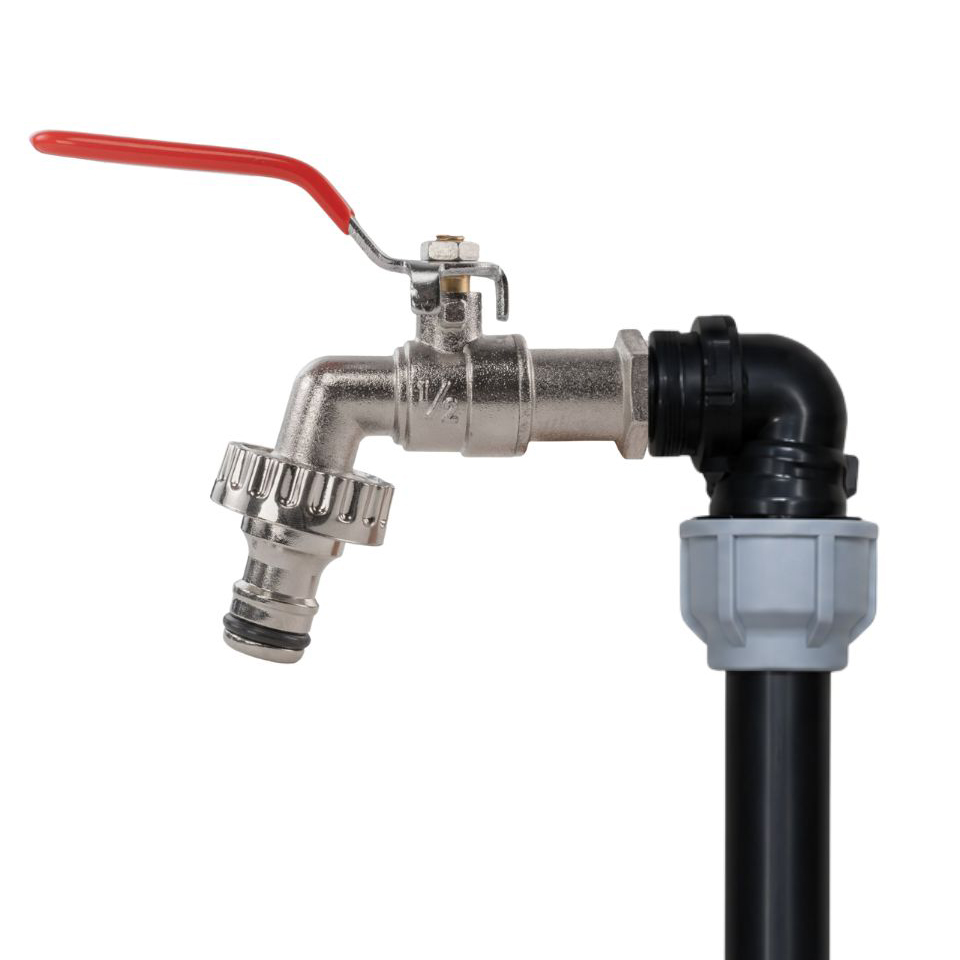

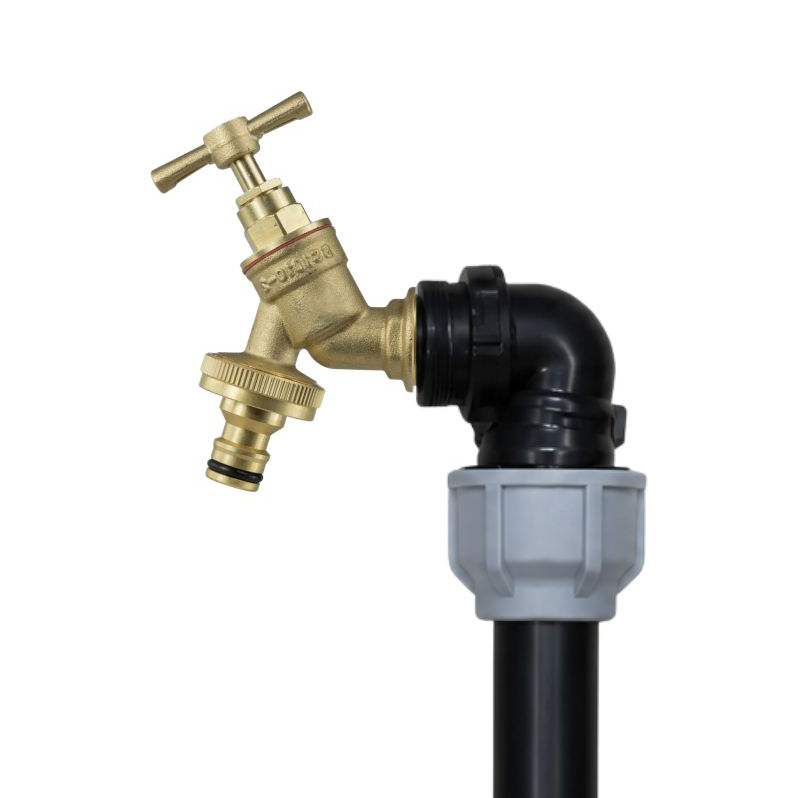

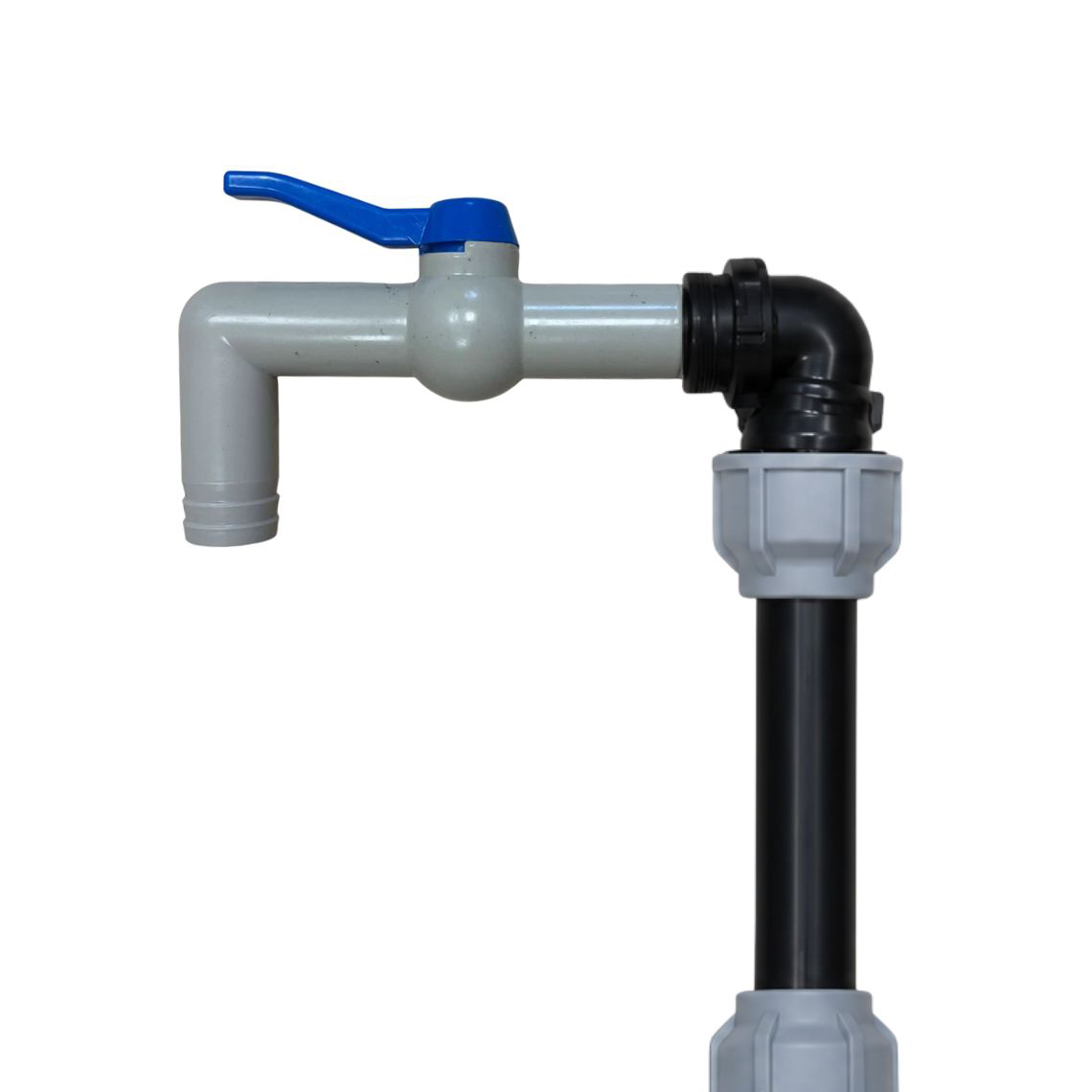

The tap is chosen with the kit. The options are a brass double tap; brass, nickel-plated brass or lever taps, each with either a barbed hose tail or a snap-on hose connector; plastic taps in black nylon, black polypropylene or white polypropylene; and long polypropylene taps with a 45 or 90 degree spout.
Kits are offered for two, three or four tanks and for 25 mm, 32 mm or 50 mm MDPE pipe, and the option list shows which combinations are available. The kit suits gardeners and anyone else who stores water in IBC tanks and would rather use them as one supply.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 25mm, 32mm, 50mm |
| Model | 2 IBC – Brass Double Tap, 2 IBC – Brass Barbed Tap, 2 IBC – Brass Snap-On Tap, 2 IBC – Lever Barbed Tap, 2 IBC – Lever Snap-On Tap, 2 IBC – Nickel Brass Barbed Tap, 2 IBC – Nickel Brass Snap-On Tap, 2 IBC – Black Nylon Tap, 2 IBC – Black PP Tap, 2 IBC – PP Long Tap 45 Degree, 2 IBC – PP Long Tap 90 Degree, 2 IBC – White PP Tap, 2 IBC – Brass Snap-On Tap (V2Y), 3 IBC – Brass Snap-On Tap (V2Y), 3 IBC – Brass Double Tap, 3 IBC – Brass Barbed Tap, 3 IBC – Brass Snap-On Tap, 3 IBC – Lever Barbed Tap, 3 IBC – Lever Snap-On Tap, 3 IBC – Nickel Brass Barbed Tap, 3 IBC – Nickel Brass Snap-On Tap, 3 IBC – Black Nylon Tap, 3 IBC – Black PP Tap, 3 IBC – PP Long Tap 45 Degree, 3 IBC – PP Long Tap 90 Degree, 3 IBC – White PP Tap, 4 IBC – Brass Double Tap, 4 IBC – Brass Barbed Tap, 4 IBC – Brass Snap-On Tap, 4 IBC – Lever Barbed Tap, 4 IBC – Lever Snap-On Tap, 4 IBC – Nickel Brass Barbed Tap, 4 IBC – Nickel Brass Snap-On Tap, 4 IBC – Black Nylon Tap, 4 IBC – Black PP Tap, 4 IBC – PP Long Tap 45 Degree, 4 IBC – PP Long Tap 90 Degree, 4 IBC – White PP Tap |
| Item Weight | 0.745 kg, 0.795 kg, 0.895 kg, 0.925 kg, 0.935 kg, 0.945 kg, 1.125 kg, 1.145 kg, 1.175 kg, 1.285 kg, 1.315 kg, 1.325 kg, 1.335 kg, 1.379 kg, 1.535 kg, 1.79 kg, 1.84 kg, 1.95 kg, 1.98 kg, 1.99 kg, 2 kg, 2.062 kg, 2.112 kg, 2.2 kg, 2.223 kg, 2.253 kg, 2.263 kg, 2.273 kg, 2.455 kg, 2.473 kg, 2.505 kg, 2.615 kg, 2.645 kg, 2.655 kg, 2.665 kg, 2.865 kg, 3.227 kg, 3.276 kg, 3.387 kg, 3.417 kg, 3.427 kg, 3.437 kg, 3.637 kg |
