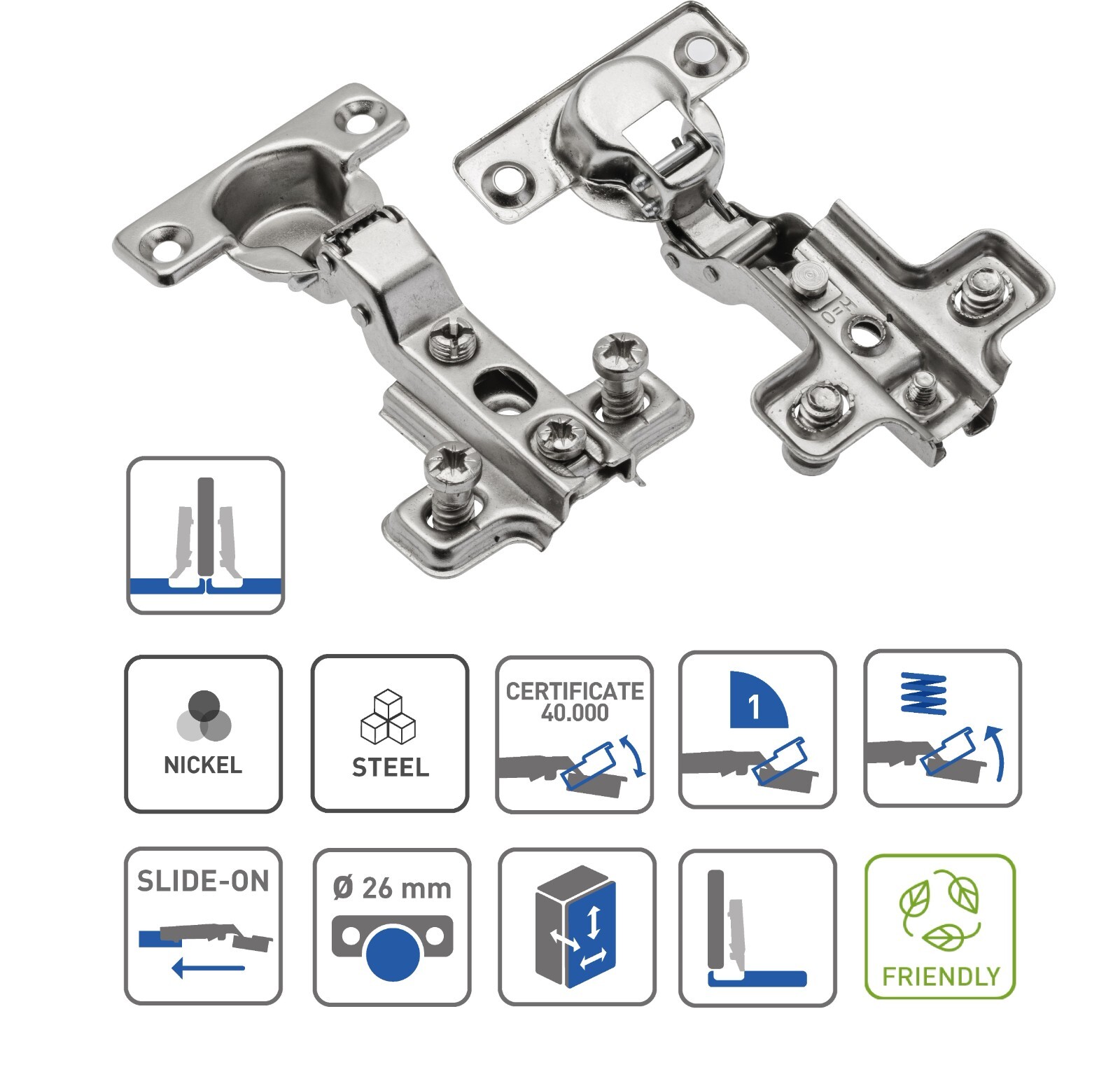

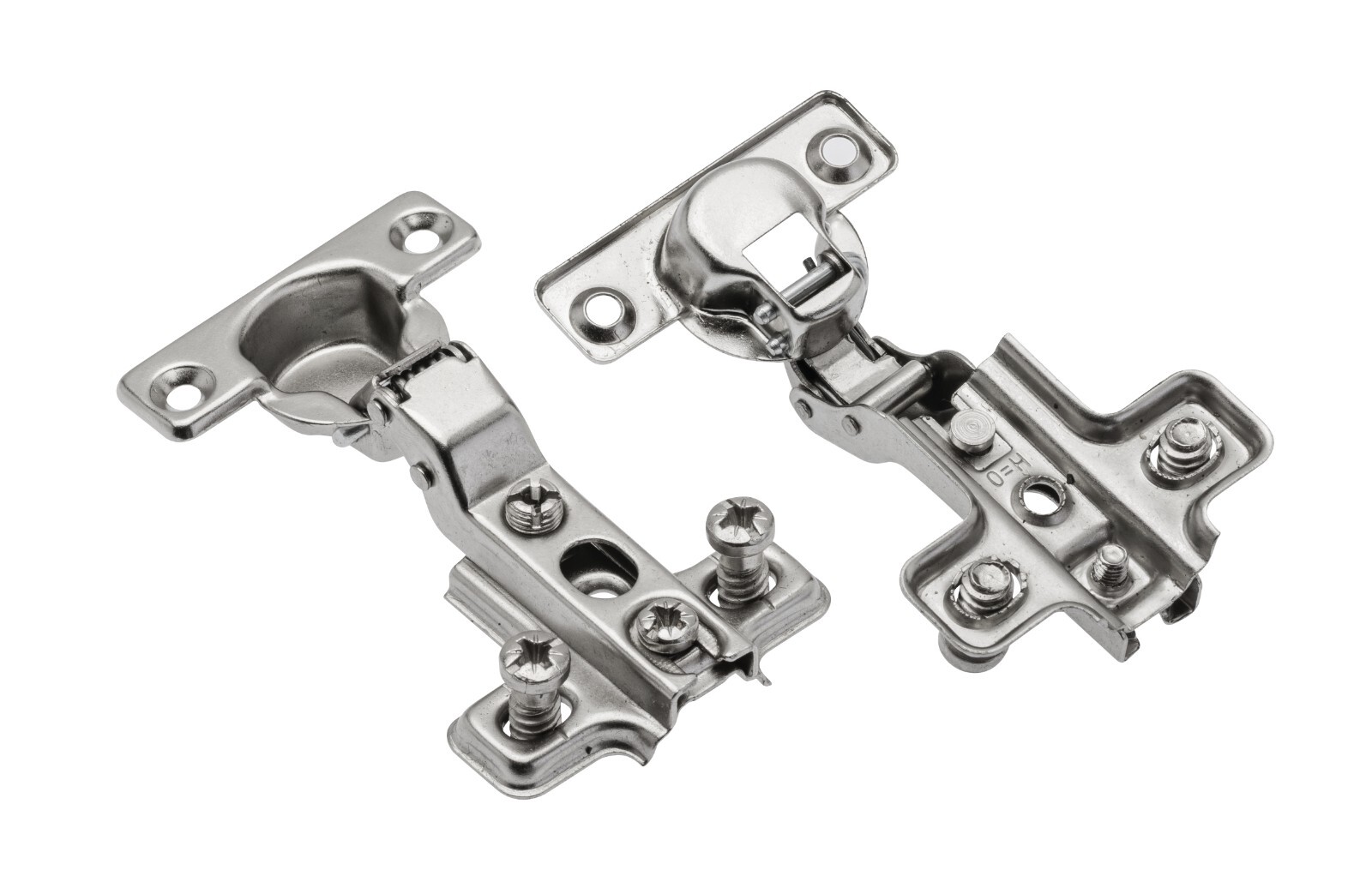

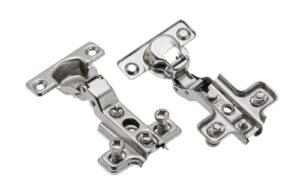

Cabinet Hinge 26mm Concealed Half Overlay
Concealed 26mm half overlay hinge for compact cupboard and cabinet doors, ideal for kitchens and caravans. Adjustable in three planes for accurate alignment and a neat finish, with a spring closing action for dependable day-to-day use.
£1.63
In stock
Product Details
This 26mm concealed half overlay hinge is designed for compact cupboard and cabinet doors, helping you achieve a clean, built-in look with reliable day-to-day performance. It’s a practical choice for kitchen units, caravans and other lightweight door fronts where tidy fitting and smooth operation matter.
Made from steel with a nickel finish, the hinge is built for regular use and includes an integrated spring closing mechanism. Three-plane adjustment allows you to fine-tune door position after fitting, making it easier to align gaps and get doors sitting evenly.
The hinge uses a slide-on fixing style to connect the arm to the mounting plate, which simplifies installation and removal during set-up or maintenance. Once fitted, the concealed cup design keeps the hardware largely hidden from view when the door is closed.
Suitable for replacement repairs or new builds, this hinge is intended for half overlay applications where the door partially covers the cabinet side. Use it on matching doors throughout your project to keep the look consistent and the closing action uniform.
Screws are included so you can get started straight away, whether you’re refreshing tired hinges or fitting new doors in a compact space.
Additional information
| Weight | 42 g |
|---|---|
| Dimensions | 9 × 7 × 3 cm |
| Adjustment | 3-way adjustable |
| Closing Mechanism | Spring closing |
| Cup Diameter | 26 mm |
| Cycle Rating | 40,000 cycles |
| Features | Concealed |
| Finish | Nickel |
| Fixing Style | Slide-on |
| Hinge Type | Half overlay concealed hinge |
| Item Weight | 63.04 g |
| Manufacturer Warranty | 2 Years |
| Material | Steel |
| Number of Items in Set | 1 |
| Brand | |
| Country of Origin |
